Eplus3D
Eplus3D

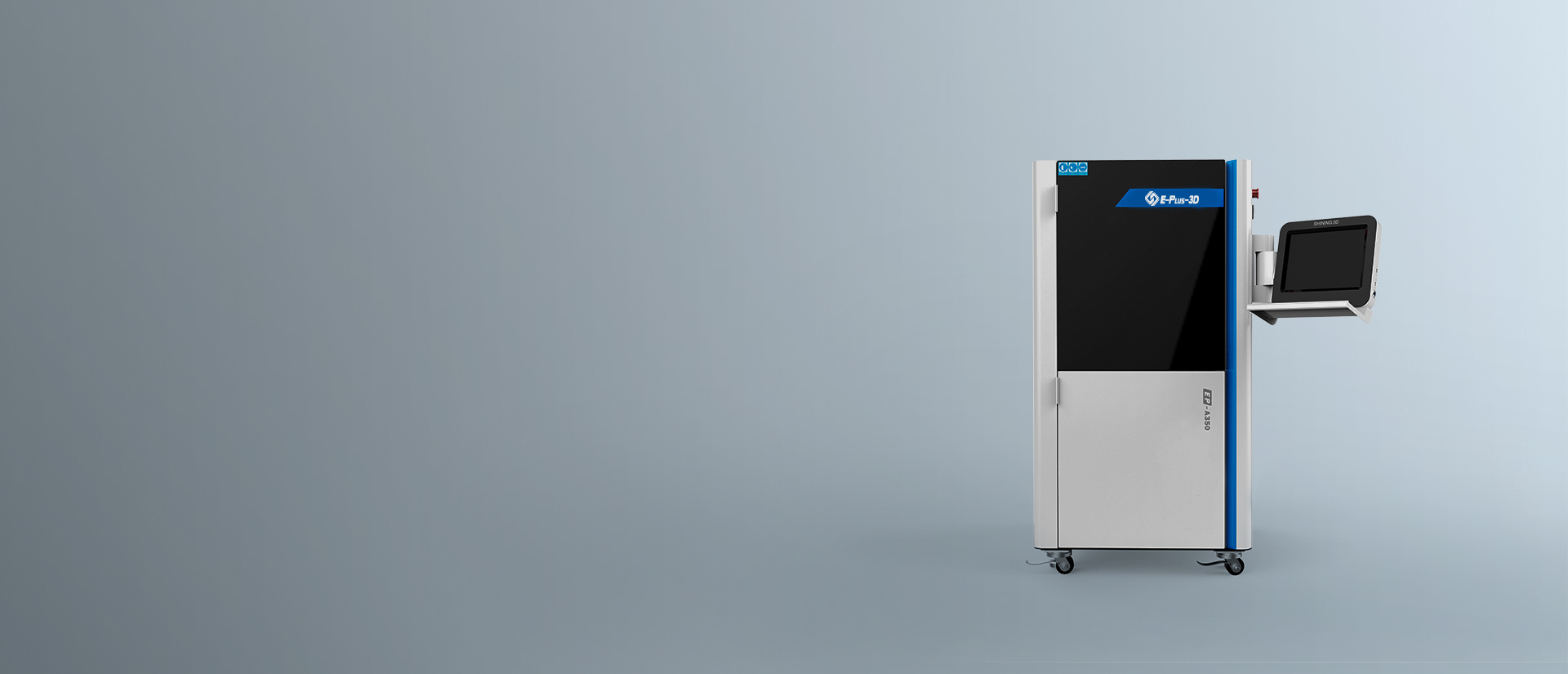

SLA 3D Printer

EP-A350 3D Printer Stereo Lithography is developed by Eplus3D, which is professional in 3D printing technology. The system is user friendly, high stability, free maintenance and perfect printing result.

EP-A350 Resin 3D Printer Features

  • EP-A350 Resin Sla 3d Printer Features Stable And Reliable
    Stable & Reliable
    • Dense high precision marble moving substrate

    • Self-developed software, support continuous upgrade

    • Automatic detection & calibration by functional module ensure working stability

    • Optimized structure, less maintenance

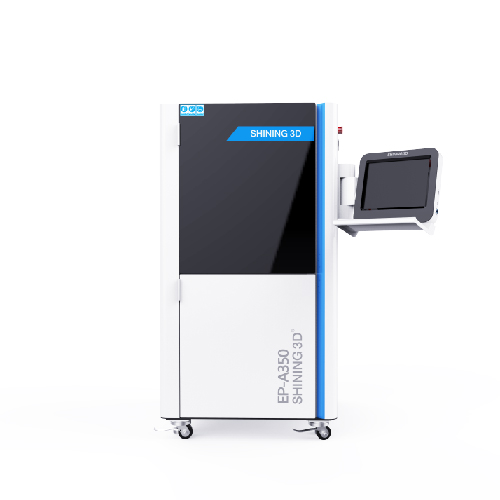

  • EP-A350 Resin Sla 3d Printer Features High Efficiency
    High Efficiency
    • Patented VarioBeam technology

    • High-speed scan

    • Brand-new software brings one-click print and outstanding performance


  • EP-A350 Resin Sla 3d Printer Features High Accuracy
    High Accuracy
    • Self-developed 3D optical high-precision calibration technology

    • Avoiding the influence of human factors

  • EP-A350 Resin Sla 3d Printer Features User Friendly Intelligent
    User-friendly & Intelligent
    • Provide different processing parameter package

    • Broad application flexibility

    • Remote control available

  • EP-A350 Resin Sla 3d Printer Features New Software
    New Software
    • EP-Resin, machine controlling software

  • EP-A350 Resin Sla 3d Printer Features Recommended Materials
    Recommended Materials
    • Somos ® GP Plus 14122
      White opaque material, similar as ABS and PBT, an ideal choice for automobile, aerospace and consumption products, also can be used in biomedicine, dental and skin applications.
      Somos ® WaterShed XC 11122
      Transparent material without color, similar as ABS and PBT, with exceptional clarity and high water-resistance, an ideal choice for automobile, medical and consumption products, including lens, packing, fluid flow analysis, concept models, etc.

  • EP-A350 Resin Sla 3d Printer Features Material Recommended
    Recommended Materials
    • Somos ® PerFORMWhite material, with high heat tolerance, outstanding detail resolution and stiffness, ideal material for a variety of applications including tooling, wind tunnel testing, high temperature testing, electrical casings and automotive housings.
      SH8900
      White material, with good surface effect and ductility, an ideal choice for hand models, functional parts, models, etc.
      Open Platform
      Compatible with standard 355 nm photosensitive resin.

What Can EP-A350 Print?

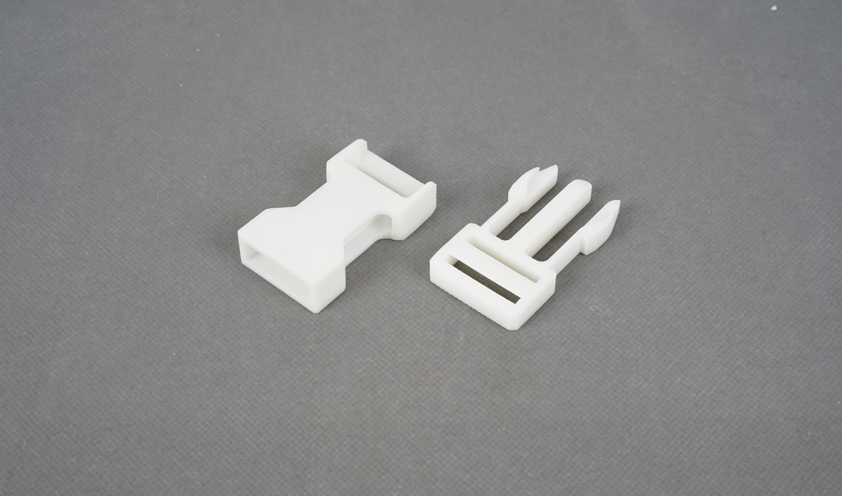

Buckle

Machine: EP-A350

Process: Stereolithography (SLA)

Material: SH8809

Size: Φ53x31x13mm³

Application: Testing

Buckle

Technical Specifications

Machine ModelEP-A350
Build Volume (X*Y*Z)350 x 350 x 300 mm
Layer Thickness0.05 mm~0.25 mm to choose
Spot Size0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)
Build Accuracy*± 0.08 mm (L<100 mm)
± 0.08% xL (L ≥100 mm)
LaserDiode-pumped solid-state laser Nd: YVO4
wavelength: 355 nm
Scanning Speed15m/s (Max), 6-10m/s (Typical)
Dimensions (L*W*H)1100*950*1640 mm
Net Weight440 kg
Resin70 kg
Power Supply200-240 VAC, 50/60 Hz, single phase
SoftwareEP-Resin
Input Data*.stl /*.slc/*.cli/*.epi
Working PlatformMarble platform (A0 level)
Material Level Position Accuracy± 0.02
Focus LensF-theta lens system
Optical Scanning SystemHigh-speed scanning galvanometer
Operating EnvironmentTemperature 20-26; relative humidity <40% (non-condensing)


Contact Eplus3D
With more than 30 years of AM technology accumulation, Eplus3D strives to bring you long-term success, from a professional start in industrial 3D Printing solutions to qualified system maintenance and globally available support. Get in touch with us today and we'll find the tailored solution to fit your needs as soon as possible!
