Eplus3D
Eplus3D

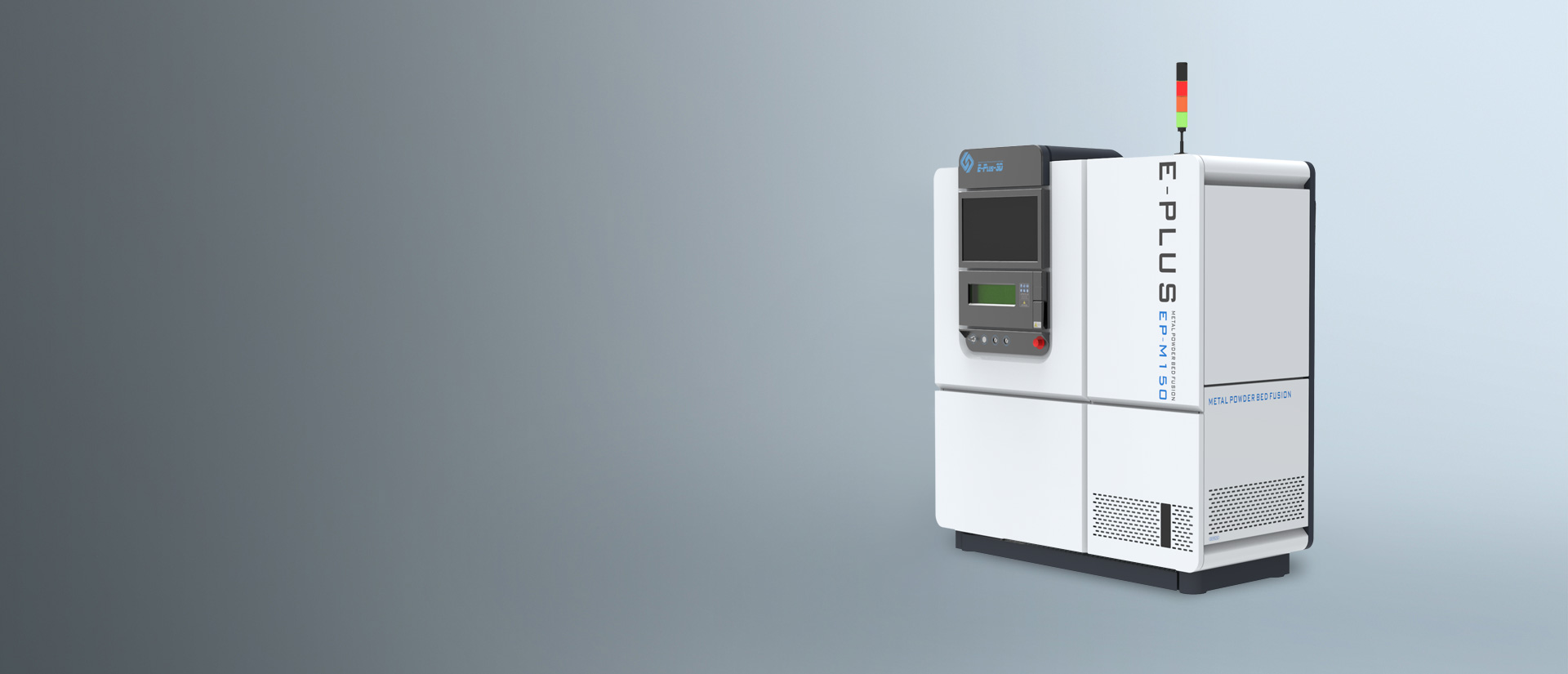

SLM Metal 3D Printer

Eplus3D Metal Dental 3D Printer EP-M150 can professionally print metal dental crowns, bridges, brackets with improved powder feeding and sieving system enables a high material utilization rate, which is more than 550 crowns printed only by 1kg powder Optimized chamber structure and excellent sealing properties minimize gas consumption <0.2L/min(printing period is 0.3±0.1MPa).

EP-M150 Metal Dental 3D Printer Features

  • EP-M150 Metal Dental 3d Printer Feature High Efficiencyhigh Quality Fine Details

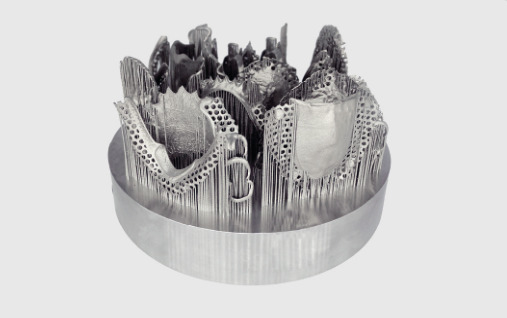

    High Efficiencyhigh Quality & Fine Details
    • It only takes around 5.5hrs to print a full plate of teeth around 220 crowns), around 8hrs to print a full plate of partials (around 25 pcs.)

  • EP-M150 Metal Dental 3d Printer Feature Low Operation Cost

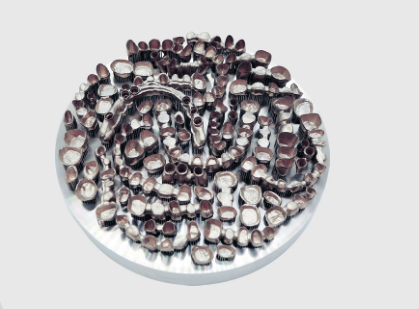

    Low Operation Cost
    • Improved powder feeding and sieving system enables a high material utilization rate:approx. 550 crowns printed only by 1 kg powder.

    • Optimized chamber structure and excellent sealing proper-ties minimize gas consumption:gas consumption <0.2 L/min (printing period).

  • EP-M150 Metal Dental 3d Printer Feature Convenient Operationlow Operation Cost
    Convenient Operationlow Operation Cost
    • “One-click printing” makes sure people can operate EP- M150 very easily.

    • Optimized structure design allows easier maintenance.

  • EP-M150 Metal Dental 3d Printer Feature Safety
    Safety
    • Safety desing,anti_misoperation,anti-electric shock, fire prevention,anti-waste,anti-pollution

    • Real -time monitoring and traceable of working environment and gas sources status, safe and reliable.

What Can EP-M150 Metal Dental Print?

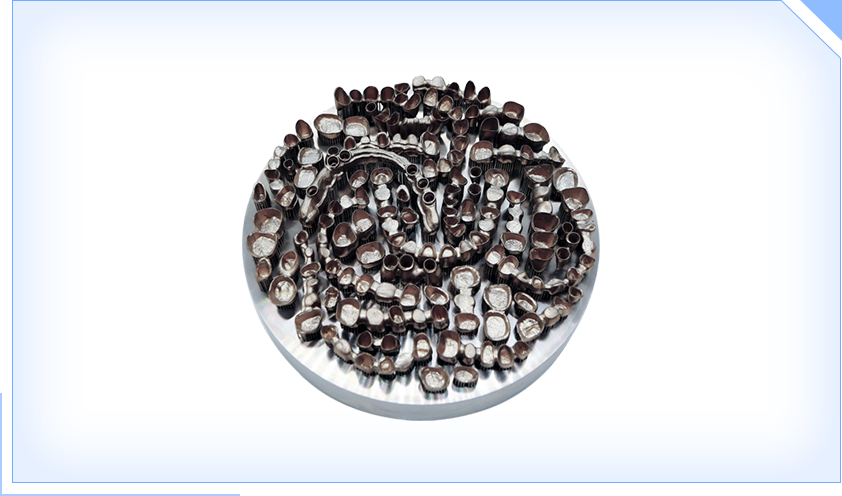

Dental Crown

Machine: EP-M150 Dental

Process: Metal Powder Bed Fusion (MPBF)

Material: Cobalt chrome

Size: Φ Φ150x35mm

Printing time: 4.5 h

Application: Dental

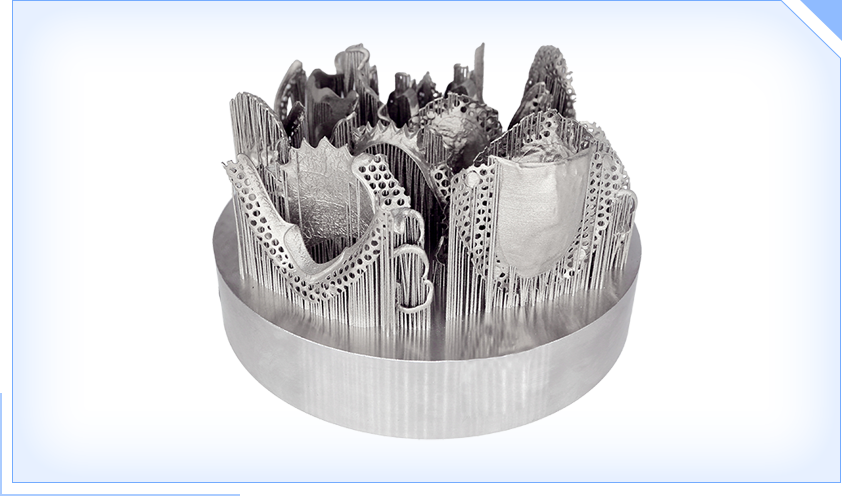

Dental Frame

Machine: EP-M150 Dental

Process: Metal Powder Bed Fusion (MPBF)

Material: Titanium alloy

Size: Φ Φ150x70mm

Printing time: 5 h

Application: additive manufacturing dental

Dental Crown
Dental Frame

EP-M150 3D Printer Technical Specifications


Machine ModelEP-M150
Build Volume (X x Y x Z) (height incl. build plate)Φ150 x 100 mm (Φ 5.91 x 3.94 in)
Optical SystemFiber Laser 200 W (single or dual-laser optional)
Spot Size40 - 60 μm
Max Scan Speed8 m/s
Theoretical PrintspeedUp to 35 cm³/h
Layer Thickness20 - 50 μm
MaterialTitanium Alloy, Cobalt Chrome.
Power Supply220 V, 50 / 60 Hz, 2.5 / 3.5 kW
Gas SupplyAr / N2
Oxygen Content≤ 100 ppm
Dimension (W x D x H)1750 x 810 x 2190 mm
Weight900 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File


Contact Eplus3D Metal 3D Additive Manufacturing
With more than 30 years of AM technology accumulation, Eplus3D strives to bring you long-term success, from a professional start in industrial 3D Printing solutions to qualified system maintenance and globally available support. Get in touch with us today and we'll find the tailored solution to fit your needs as soon as possible!
