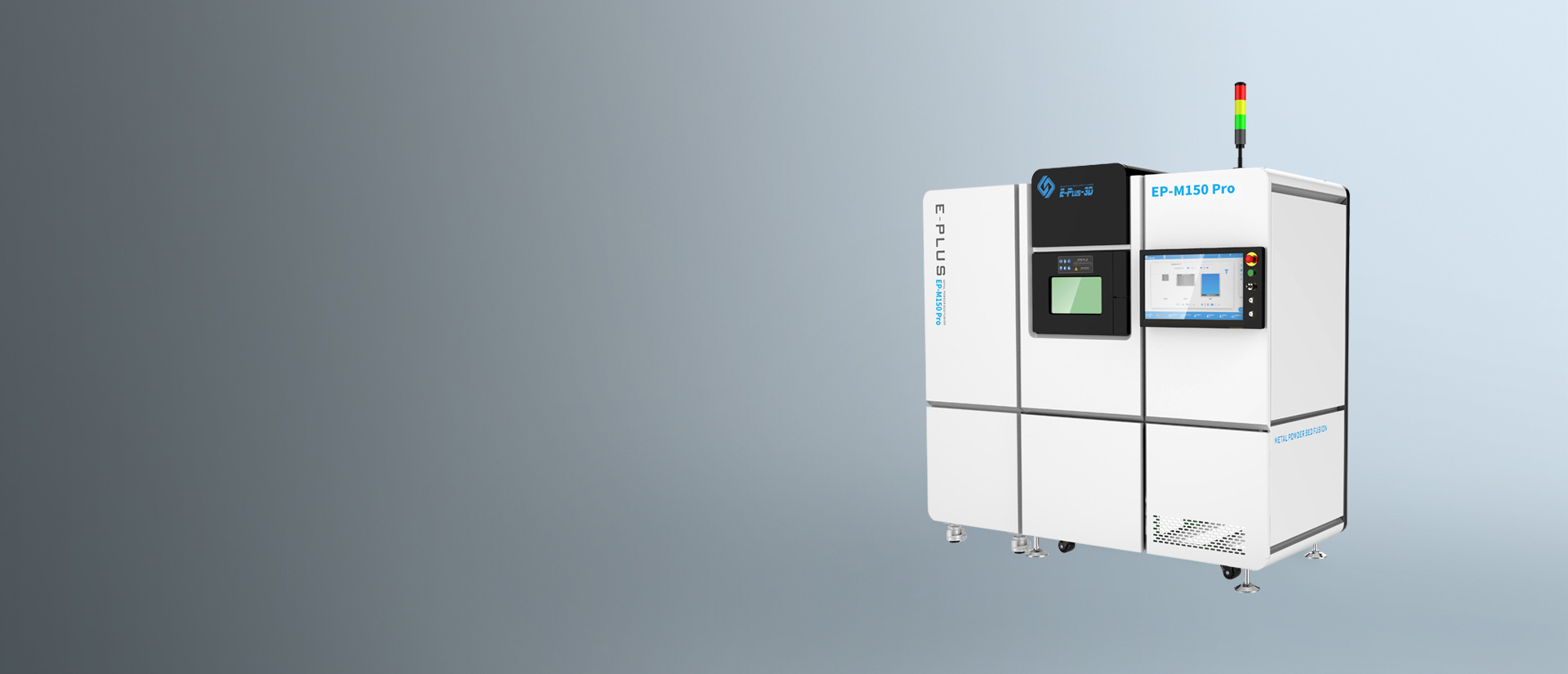

SLM Metal 3D Printer

EP-M150Pro adopts patented MPBF™(Metal Powder Bed Fusion)to produce high performance, high accuracy and high details parts at large scale. The machine is capable of optional single/dual laser system, and 200/500W laser source for different production requirements. The available materials are Aluminum alloy, Titanium alloy, Inconel alloy, Maraging steel, Stainless steel, CoCr, Copper alloy and so on.

EP-M150Pro Metal 3D Printer Features

  • EP-M150pro Metal 3d Printer Feature High Precision

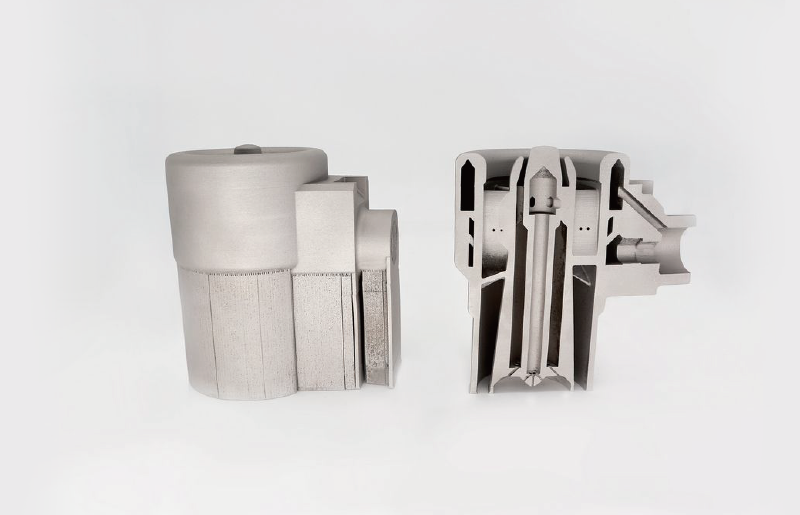

    High Precision
    • High laser beam quality

    • Tiny laser spot

    • High consistency and uniform laser beam quality from different positons in the building platform

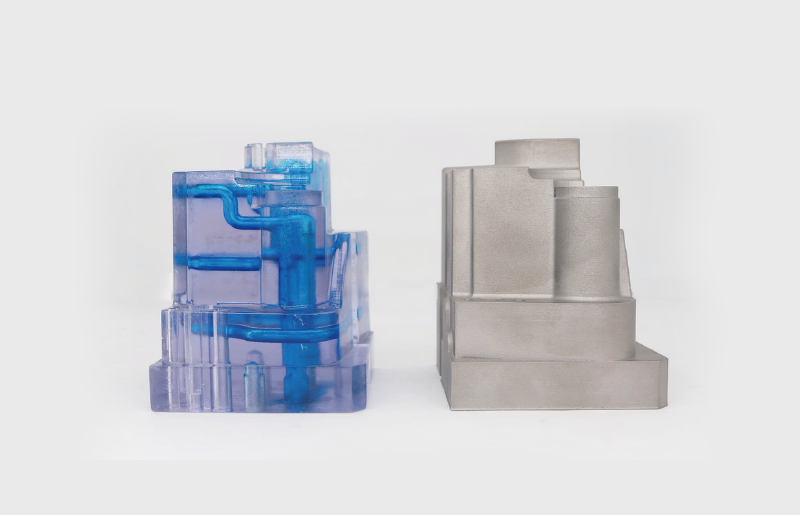

  • EP-M150pro Metal 3d Printer Feature High Performance
    High Performance
    • The density of printed parts can reach nearly 100 %

    • Volatility of mechanical properties< 5 %

    • In dual laser printing mode, precision deviation in alignment area ≤ 0.15 mm

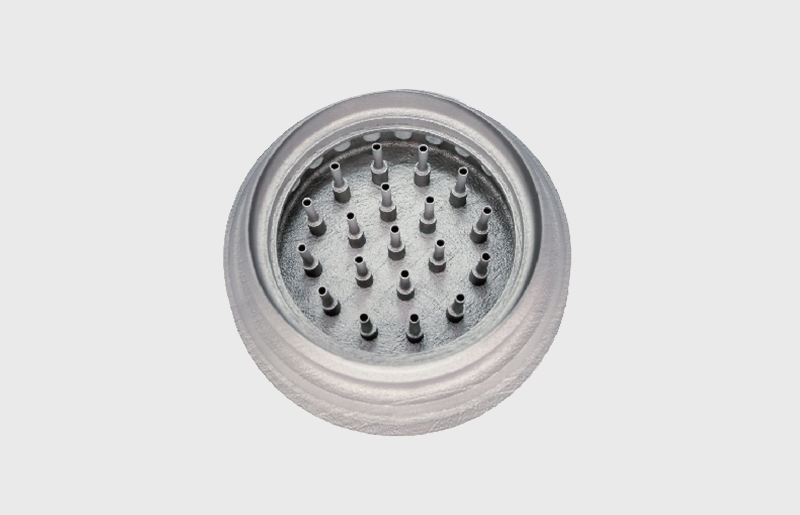

  • EP-M150pro Metal 3d Printer Feature High Efficiency
    High Efficiency
    • The Layer thickness can be up to 100 μm

    • With the latested upgrated technology combining dual-laser with large layer thickness mode, the productivity has been  risen for 2.3 ~ 2.7 times.

  • EP-M150pro Metal 3d Printer Feature Openness

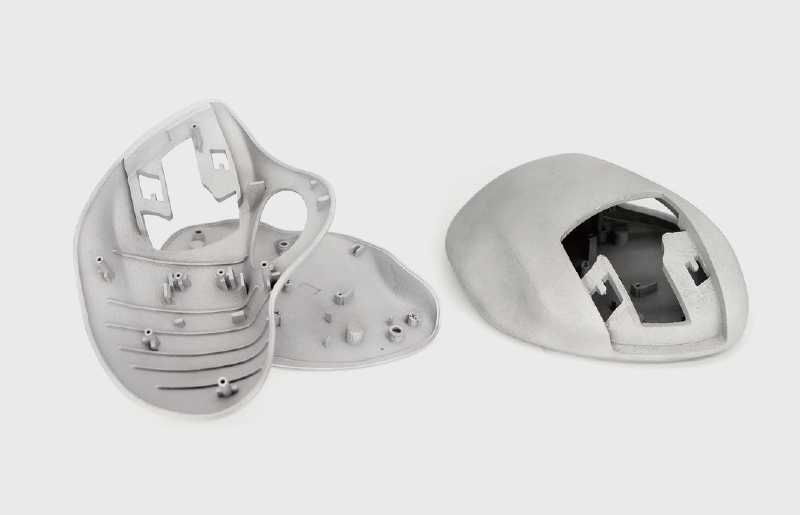

    Openness
    • High consistency, different machines could use the same set of process parameters.

    • Machine compatible with multiple materials, the same machine can print multiple materials without adjusting the optical path.

  • EP-M150pro Metal 3d Printer Feature User Friendly Operation System
    User friendly Operation System
    • Ergonomics overall design for users

    • With "one-click printing" function, each process is ready to run, click the "print" button on the screen to start printing.

    • The replacement of filter element, residual material tank substrate and recoater can be completed within 2 minutes

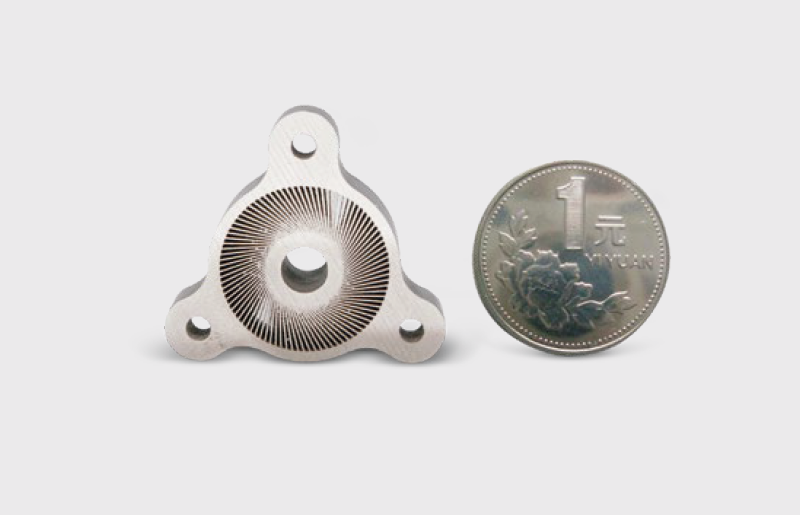

  • EP-M150pro Metal 3d Printer Feature Afforadable Operation Cost
    Afforadable Operation Cost
    • Air consumption during processing < 3 L / min (0.3 MPa)

    • Powder supply is accurate, stable and controllable, high utilizationrate of powder

    • The existing material parameter packages are provided for free

  • EP-M150pro Metal 3d Printer Feature Safer
    Safer
    • Safety design, anti-misoperation, anti-electric shock, fire prevention, anti-waste, anti-pollution

    • Real-time monitoring and traceable of working environment and gas source status, safe and reliable.

What Can EP-M150Pro Print?

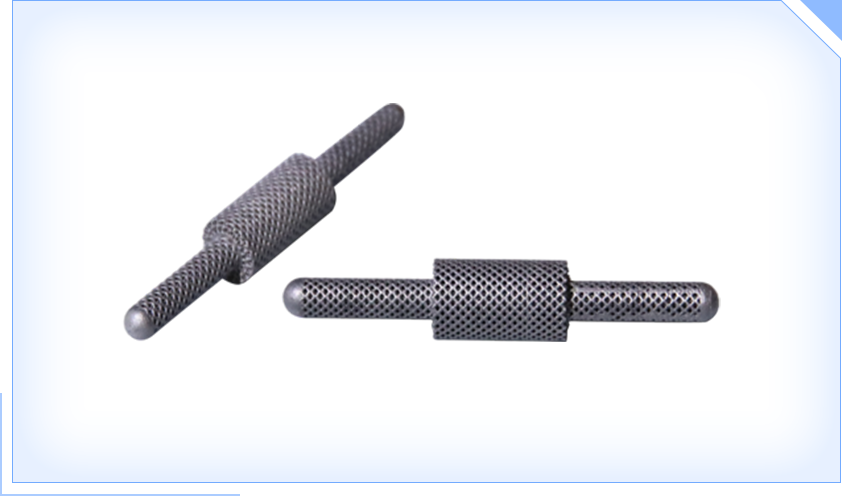

Implant

Machine: EP-M150Pro

Process: Metal Powder Bed Fusion (MPBF)

Material: Titanium alloy

Size: Φ 10x65 mm³

Printing time: 0.8 h

Application:  Medical

Implant

Technical Specifications

Machine ModelEP-M150 PRO
Build Chamber (XxYxZ)Φ156mmx240mm³
Optical SystemFiber Laser, 500W (single or dual-laser optional)
Spot Size70μm
Max Scan Speed8m/s
Building Speed(1)
Single laser: 5~20cm³/h Dual laser: 8~35cm³/h
Layer Thickness20μm -100μm
MaterialTitanium Alloy, Aluminium Alloy, Nickel Alloy, Maraging Steel,  Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply


380V, 3P/N/PE, 12KW, 23A, 50~60Hz ( Dual laser: 13.5KW,28A )
Gas SupplyAr/N₂
Oxygen content≤100ppm
Dimension (WxDxH)
2120x980x2250mm³
Weight1500kg
Software
EP Control, EPHatch
Input Data FormatSTL or other Convertible File
