SLM Metal 3D Printer

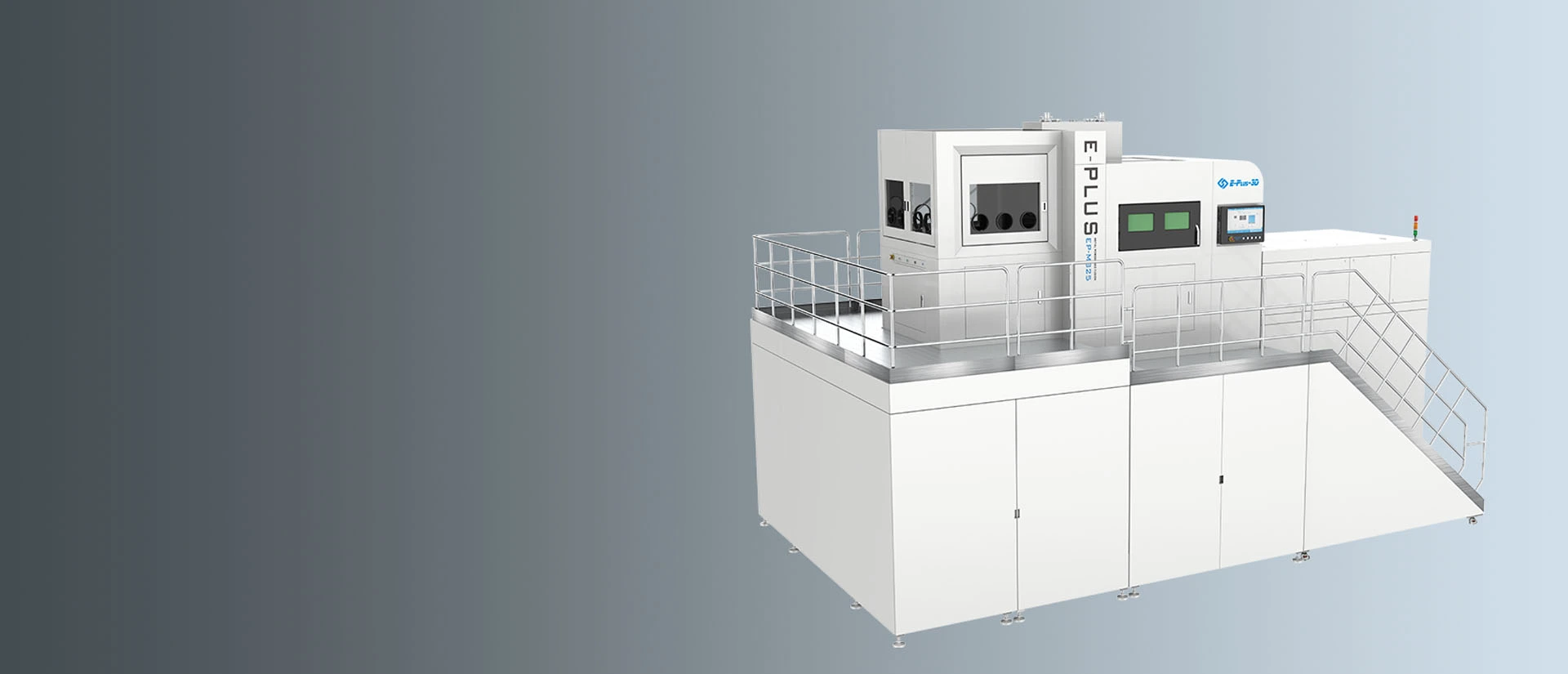

EP-M825 is using a large building envelope and ten-laser system to ensure a high efficiency production. The precise positioning and innovative area splicing control technology offers uniformity and stability throughout the whole printing phase.



The building speed can be up to 410cm³/h, which is suitable for direct manufacturing of high-performance components in aerospace, mold manufacturing, automotive industry, etc.

EP-M825 Metal 3D Printer Features

  • HIGH EFFICIENCY & PRODUCTIVITY
    • Printing of mass-individualized parts in the 760 Liter build chamber.

    • Ten lasers are printing simultaneously with speed up to 410 cm³.

    • Bi-direction powder spreading shortens production cycle.

  • EXCELLENT QUALITY & GOOD CONSISTENCY
    • Accuracy deviation of lap area less than ± 0.1 mm.

    • High parts accuracy in the overlap area of 0.1 mm.

    • Print density > 99.9%.

    • Fluctuation of mechanical properties < 5%.

  • HIGH PRECISION
    • High quality laser beam and precise laser positioning control ensures stable & excellent print quality.

    • The optimized design of the wind flow structure effectively removes dust and splashes, ensuring that the printing surface is bright and tidy, and the sparks are bright and consistent.

  • EASY OPERATION & MAINTANCE
    • Three-stage filtration equipped with permanent filter element brings easier maintain.

    • User-friendly interface with fully automatic one click printing function.

    • The build job information is displayed in real time with traceable printing parameters report.

    • The one-piece take out function ensures a high automation.

  • REAL TIME MONITORING & HIGH SECURITY
    • Safety design, prevent mis-operation, electric shock, fire, waste and pollution.

    • Outstanding overall sealing performance, use and recovery of powder in a closed state.

    • Environment and gas source state real-time monitoring, safe and reliable.

What can EP-M825 print?

Rocket Engine Nozzle Expansion Section

Machine: EP-M825

Process: Metal Powder Bed Fusion(MPBF)

Material: Stainless steel

Size: 1050 x 160 mm

Printing time: 160H

Application: Aerospace

Rocket Compartment

Machine: EP-M825

Process: Metal Powder Bed Fusion(MPBF)

Material: In718

Size: 630 x 630 x 1100 mm

Application: Aerospace

Rocket Engine Nozzle Expansion Section
Rocket Compartment

Technical Specifications


Machine ModelEP-M825
Build Volume (X x Y x Z) (height incl. build plate)825 x 825 x 1100 mm (32.5 x 32.5 x 43.3 in)
Optical SystemFiber Laser 4 / 6 / 8 / 10 x 500 W (700 W is optional)
Spot Size70 - 120 μm
Max Scan Speed8 m/s
Layer Thickness20 - 120 μm
Theoretical PrintspeedUp to 410 cm³/h
MaterialTitanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, etc
Power Supply380 V, 50 / 60 Hz, 29.5 〜40 kW
Gas SupplyAr / N2
Oxygen Content≤ 100 ppm
Dimension (W x D x H)8290 x 4690 x 5470 mm
Weight35000 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
