Eplus3D's metal 3D printers deliver purpose‑built solutions: Atlas Line for large‑scale, monolithic manufacturing, Forge Line for scalable, cost‑effective series production, and Flex Line for speed and agility in R&D. Together, they turn your production priority into a competitive edge - Bigger, Faster, Leaner

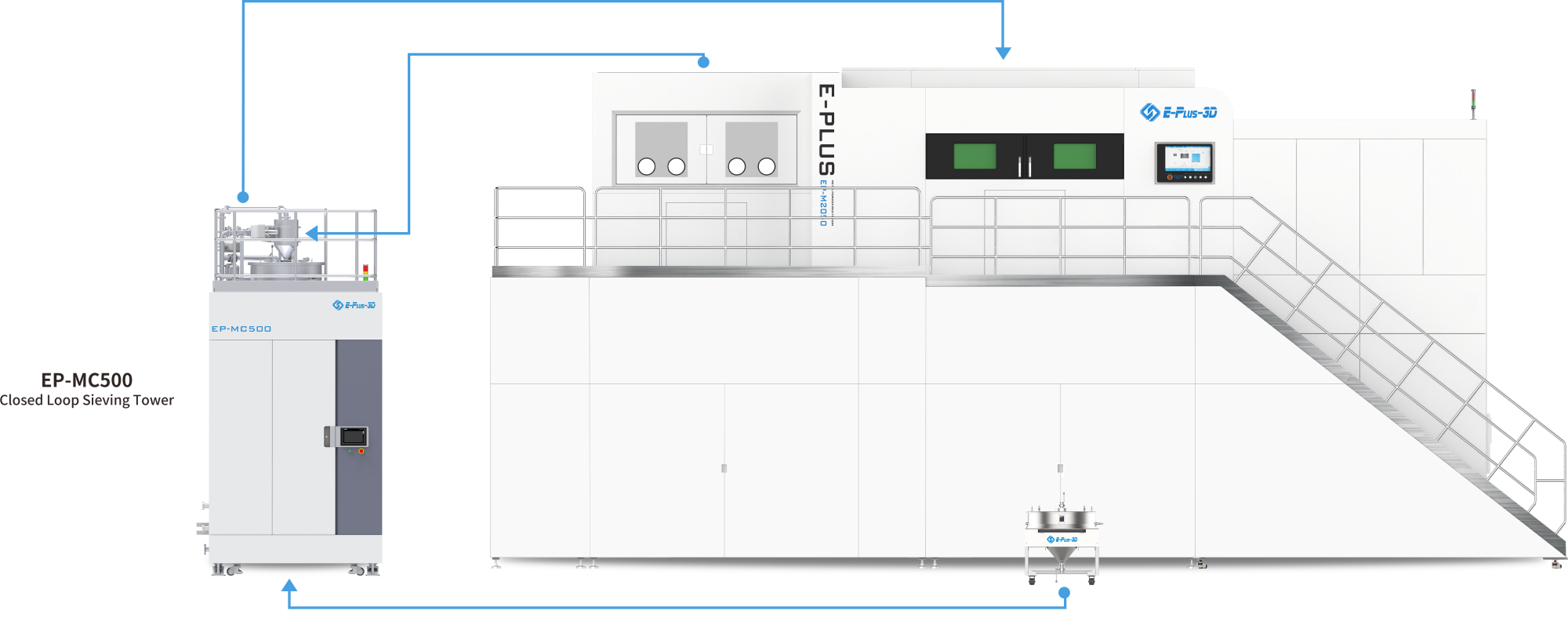

Atlas Line
A large forming chamber, reaching up to 2050 x 2050 x 1100 mm (with a customizable Z-axis up to 2000 mm), is equipped to handle one-piece forming of large-sized components and parts mass production.
The printer is capable of printing at speeds of up to 1080 cm³/h, with 36 lasers simultaneously engaged in the printing process, which enables the printer to achieve uniform and consistent full-size printing.
Excellent high beam quality (M²≤1.1) and detail resolution ensure the forming accuracy and mechanical properties of printed parts.
Print density > 99.9% and fluctuation of mechanical properties < 5%.
Large layer thickness printing with adjustable recoating layer thickness can meet different printing requirements, demonstrating excellent large layer thickness printing performance.
Open parameters for editing such as laser power, scan speed, scan direction and up and down contours.
Process software enables the effective planning of design, simulation and printing path planning, within one software and highly improving the production efficiency.
Process software supports SLC and CLI formats, enabling real-time modification of printing parameters during the printing process.
Three-stage filtration, which can use blow back function to remove the fume, equipped with permanent filter element.
Low gas consumption, effectively controls gas consumption during processing, and reduces production costs.
Offering diverse scraper options (rubber, alloy steel) for selection based on printing materials and part needs, further optimizing printing results.
We support our customers with technical consulting services, including data evaluation, application development.
Assisting our customers in new material parameter development, existing parameter packages are provided free of charge.
Free equipment installation and maintenance during warranty period, full set of technical training is provided.
Machine Model | EP-M2050 |
Build Volume (X x Y x Z) (height incl. build plate) | 2050 x 2050 x 1100 mm (80.71x 80.71 x 43.31 in) |
Optical System | Fiber Laser 36 / 49 / 64 x 500 W (700 W and 1000 W are optional) |
Spot Size | 70 - 120 μm |
Max Scan Speed | 8 m/s |
Layer Thickness | 20 - 120 μm |
Theoretical Printspeed | Up to 1080 cm³/h |
Material | Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc. |
Power Supply | 380 V, 50 / 60 Hz, 53 kW |
Gas Supply | Ar / N2 |
Oxygen Content | ≤ 100 ppm |
Dimension (W x D x H) | 12700 x 8330 x 6495 mm |
Weight | 127000 kg |
Software | EPControl, EPHatch |
Input Data Format | STL or other Convertible File |
