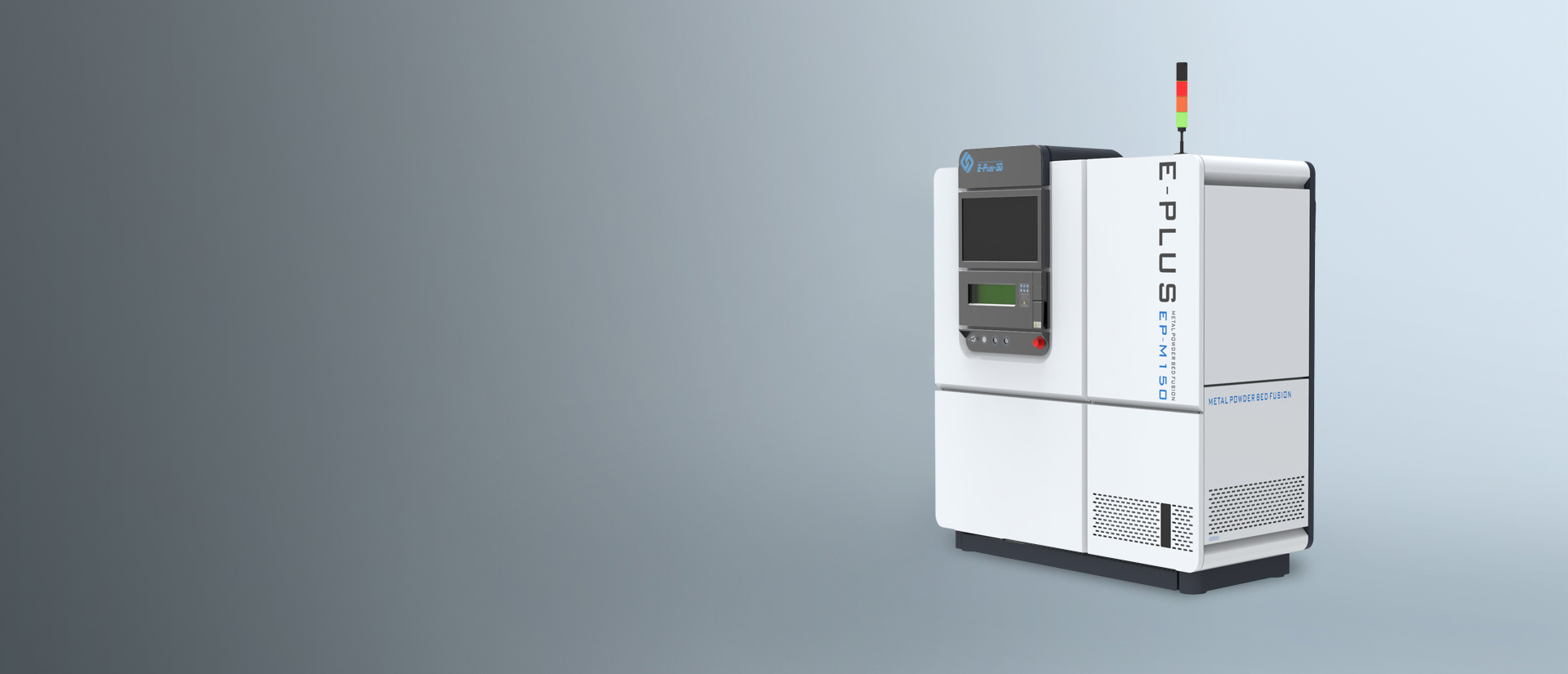

SLM Metal 3D Printer

With Eplus3D MPBF™(Metal Powder Bed Fusion) technology, EP-M150 can professionally print complex 3D geometry data into high-performance metal 3D parts which are suitable for batch manufacturing of dental parts medical implants and material research centers to develop various metal powders with its open parameter platform.

EP-M150 Metal 3D Printer Features

  • EP-M150 Metal 3d Printer Feature High Precision Printing Quality High Efficiency
    High Precision Printing Quality & High Efficiency
    • Small laser facula and reduced layer thickness guarantees enhanced precision printing and high quality parts.

    • Intelligent powder coating method and faster scanning speed ensures high speed printing.

    • Precise oxygen control and unique scanning path technology yields high-quality printing.

  • EP-M150 Metal 3d Printer Feature Low Cost Operation
    Low-cost Operation
    • Improved powder feeding and sieving system enables high material utilization.

    • Gas consumption<0.8L/min (Printing period).

    • Optimized chamber structure and excellent sealing properties minimize gas consumption.

  • EP-M150 Metal 3d Printer Feature Easy Maintenance High-Safety
    Easy Maintenance & High Safety
    • Intuitive user interface.

    • Optimized structure design for easier maintenance

    • Integrates more than 10 security technologies.

    • Working environment and real-time gas monitoring.

What Can EP-M150 Print?

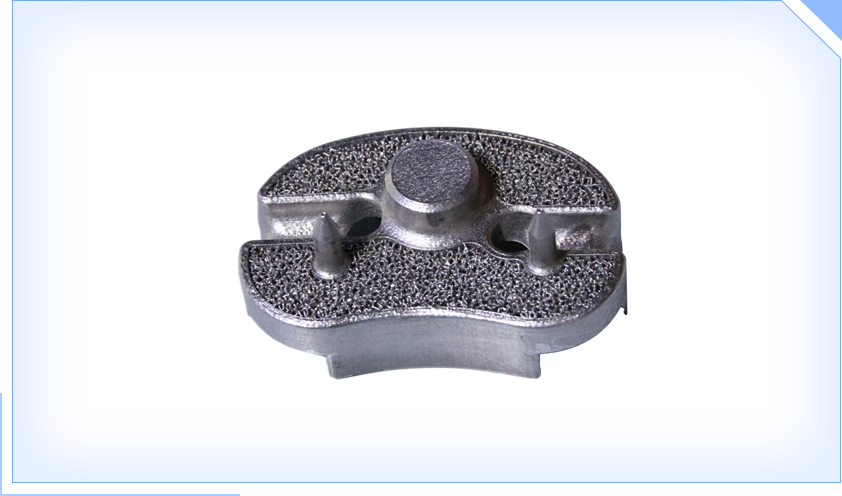

Implant

Machine: EP-M150

Process: Metal Powder Bed Fusion (MPBF)

Material: Titanium alloy

Size: Φ55x30x25mm³

Printing time: 1.3 h

Application: Medical

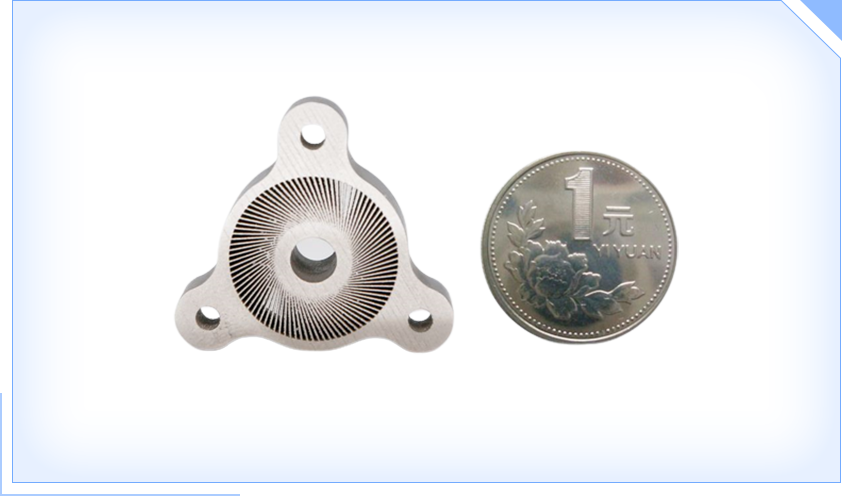

Fine Structure Parts

Machine: EP-M150

Process: Metal Powder Bed Fusion (MPBF)

Material: Stainless steel

Size: Φ32*29*11mm³

Application: Industry, Aerospace

Implant
Fine Structure Parts

Technical Specifications

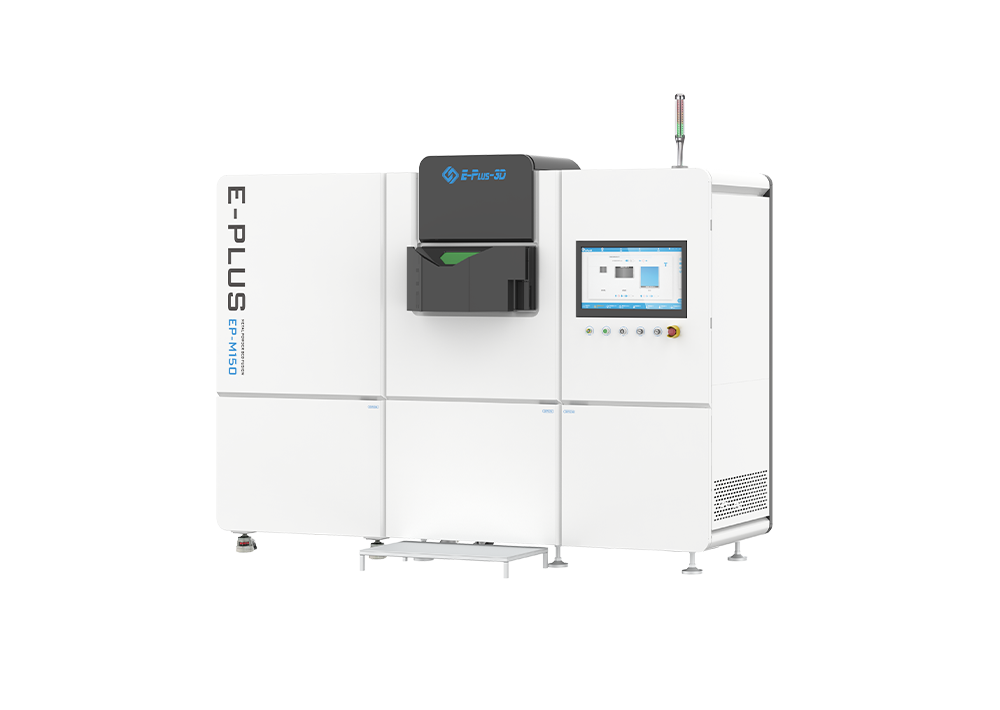

Machine ModelEP-M150
Build Chamber (XxYxZ)Φ153mm x120mm³
Optical SystemFiber Laser, 200W/500W (single or dual-laser optional)
Spot Size40-60 μm
Max Scan Speed8m/s
Building Speed(1)
Single laser: 5~20cm³/h Dual laser: 8~35cm³/h
Layer Thickness200W laser: 20μm -50μm  500W laser: 20μm -100μm
MaterialTitanium Alloy, Nickel Alloy, Maraging Steel, Stainless  Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply
220V, 4.2KW, 14A, 50~60Hz (Dual laser : 5.8KW, 19A)
Gas SupplyAr/N₂
Oxygen content≤100
Dimension (WxDxH)
1750x810x2190mm³
Weight900kg
SoftwareEP Control, EPHatch
Input Data FormatSTL or other Convertible File
