SLM Metal 3D Printer

EP-M400S is available in four configurations: single, dual, triple and quad laser,offering the flexibility to print materials such as titanium alloy, aluminum alloy, nickel-based alloys, maraging steel, stainless steel, cobalt chrome and other materials. EP-M400S is suitable for the direct manufacturing of large-size, high-precision, high-performance components in aerospace and other industries.

EP-M400S Metal 3D Printer Features

  • EP-M400S Metal 3D Printer Feature High Quality
    • Three-stage filtration, which can use blow back function to remove the fume, equipped with permanent filter element

    • Excellent beam and power stability, as well as energy control strategies can inhibit porosity, micro-cracks and non-fusion defects

    • Optimized design of gas flow ensures effective removal of dust and condensate, to produce uniform printing of full-format parts

  • EP-M400S Metal 3D Printer Feature High Efficiency
    • Supports four different printing configurations: single, dual, triple and quad laser

    • Independently developed processing software enables optimized scanning strategies, effectively reducing processing time

  • EP-M400S Metal 3D Printer Feature Real Time Monitoring & High Security
    • Real-time monitoring of the working environment and air source status ensures safety and reliability

    • The equipment has passed the EU CE certification and FDA laser safety certification, with high safety

    • Safety design, prevent mis-operation, electric shock, fire, waste and pollution

    • Well-designed overall equipment sealing performance, maintaining closed conditions for both powder usage and recovery processes

  • EP-M400 Metal 3D Printer Feature High Intelligentization & Automation
    • User-friendly interface with fully automatic one-click printing and pickup function

    • The build job information is displayed in real time with traceable printing parameters report

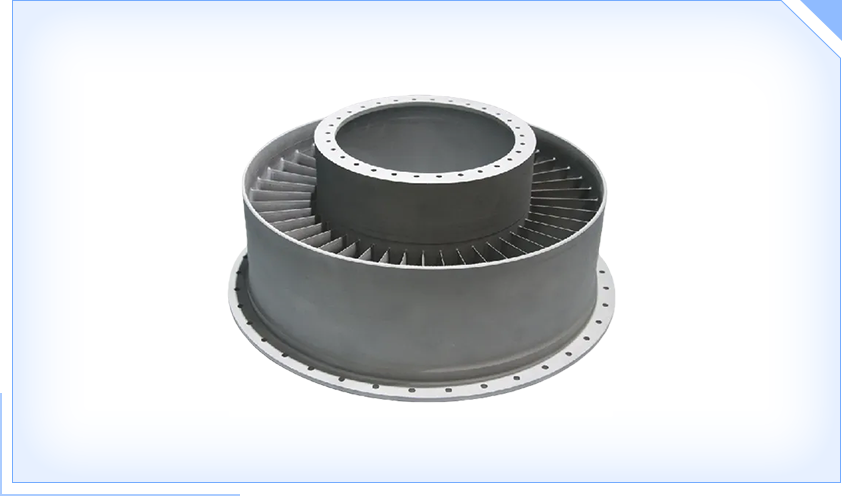

What Can EP-M400S Print?

Overall Navigator

Machine:  EP-M400S

Process:Metal Powder Bed Fusion(MPBF)

Material: Titanium Alloy

Application:  Aerospace

Overall Navigator

Technical Specifications

Machine ModelEP-M400S
Build Volume (X x Y x Z) (height incl. build plate)400 x 400 x 450 mm (15.75 x 15.75 x 17.72 in)
Optical SystemFiber Laser 1 / 2 / 3 / 4 x 500 W (700 W and 1000 W are optional)
Spot Size70 - 120 μm
Max Scan Speed8 m/s
Layer Thickness20 - 120 μm
Theoretical PrintspeedUp to 190 cm³/h
MaterialTitanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply380 V, 50 / 60 Hz, 12.5 〜18 kW
Gas SupplyAr / N2
Oxygen Content≤ 100 ppm
Dimension (W x D x H)3530 x 1700 x 2800 mm
Weight5000 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
