SLS 3D Printer

By adopting Polymer Powder Bed Fusion (PPBF), with max up to 420 x 380 x 600 mm building cylinder, Eplus3D EP-S600 ensures you the capability of high printing efficiency, fast scanning speed, large molding space, and low cost of use, fully meets the personalized needs of the rehabilitation & medical industry, which can be directly applied to personalized customi- zation and production.

EP-S600 SLS 3D Printer Features

  • EP-S600 SLS 3D Printer Features 01
    High Performance & Efficiency

    • With building cylinder 420 x 380 x 600 mm, the machine can print almost all sizes of orthotics

    • Average printing time of a single orthotic is within 11 hours, one machine can manufacture 400-450 orthotics per year

    • Advanced and high-speed optical system perfectly matches the 55W CO2 laser, with the scanning speed reaches 15 m/s

    • High material reuse rate and little generated waste, saves the printing materials in an effective way

  • EP-S600 SLS 3D Printer Features 02
    Intelligent Operation & User-friendly

    • Visualized printing process and printing report automatic generation, the printing process can be tracked

    • Capability to print with one-click, convenient operation can be controlled remotely on the phone

  • EP-S600 SLS 3D Printer Features 03
    Safe & Reliable
    • Dust-free process, whole process of picking up and powder processing is carried out in the powder cleaning platform

    • Gas in the cabin is treated by multi-stage filtration and adsorption to achieve harmless discharge

What Can EP-S600 Print?

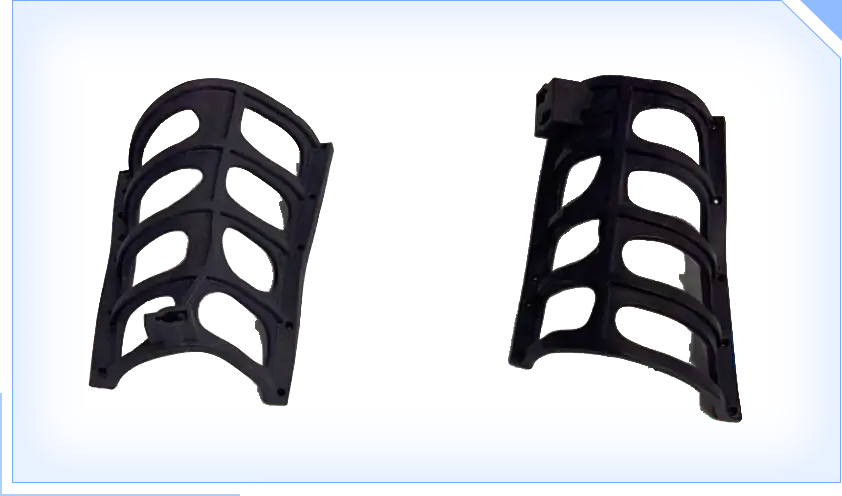

Arm Protectors

Machine: EP-S600

Process: Polymer Powder Bed Fusion(PPBF)

Material: PP

Size: 148×100×65mm

Printing time: 8h

Application: Healthcare

Arm Protectors

Technical Specifications

Machine ModelEP-S600
Building Volume420 x 380 x 600 mm
Dimension2480 x 1415 x 2160 mm
MaterialPP and its composites
Machine Weight1600 kg
Scanning SpeedMax. 15 m/s
Max. Chamber Temperature130 °C
Power SupplyAC 380 V, 50 / 60 Hz, 16 A, 6.5 kW
Layer Thickness0.1 - 0.3 mm
Laser PowerCO2 Laser, 50 W and 120 W optional
OS System SupportWindows 7/ Windows 10
Thermal Field ControlIndependent four-zone temperature control system
Temperature RegulationContinuous real-time building surface temperature monitoring
Control SoftwareEPControl, EPHatch
Output Data FormatSTL .OBJ .STEP or other convertible file

Contact Eplus3D Metal 3D Additive Manufacturing
With more than 30 years of AM technology accumulation, Eplus3D strives to bring you long-term success, from a professional start in industrial 3D Printing solutions to qualified system maintenance and globally available support. Get in touch with us today and we'll find the tailored solution to fit your needs as soon as possible!
