SLS 3D Printer

EP-P420 adopts polymer powder bed fusion (PPBF) technology, with max up to 420 x 420 x 465 mm building cylinder, EP-P420 ensures you the capability to print medium & large size parts for customized products and small batch produc- tion. Thanks to its innovative software and hardware, the EP-P420 is well designed user-friendly and cost-effective.

EP-P420 SLS 3D Printer Features

  • EP-P420 SlS 3D Printer Feature High Performance
    High Performance
    • The elimination of left and right excess material box design, resulting in higher powder utilization.

    • Optimized temperature real-time management system, temperature filed fluctuation ≤ ±1.0°C.

    • Advanced optical scanning path strategy, ensures superior details and surface quality of final parts.

    • Incorporating a chip-type heating solution for operation temperatures up to 230°C , enhancing the machine's ability to print a variety of polymers with faster, uniform heating.

    • Discrete variation of mechanical properties for full-scale printing parts is less than 5%.

    • The temperature field utilizes dual-probe detection with self-calibration function, for more stable and secure printing.

  • EP-P420 Sls 3d Printer Feature High Efficiency
    High Efficiency
    • With 120w laser power, the machine has higher printing speed.

    • Diaphragm pump for loading powders, reducing main machine vibrations, enhancing stability.

    • Design with removable molding cylinder, enabling dual-cylinder alternating printing for higher efficiency.

    • Detachable optical protective windows, makes daily maintenance easy.

    • Open source printing parameters, enables the development of new material.

    • Distinctive scanning strategy, saves the scanning time.

    • Real-time powder feeding system, saves the printing material.

    • Large volume powder dispenser, one time feeding to meet the whole cylinder printing.

    • Auxiliary machine supports one-to-two functionality for increased cost-effectiveness.

  • EP-P420 Sls 3d Printer Feature User Friendly Intelligent
    User-Friendly & Intelligent
    • One-click scanning path generation

    • Capability to print with one-click

    • Printing report automatic generation, the printing process can be tracked

    • Malfunction automatically process, avoids damage to the equipment

What Can EP-P420 Print?

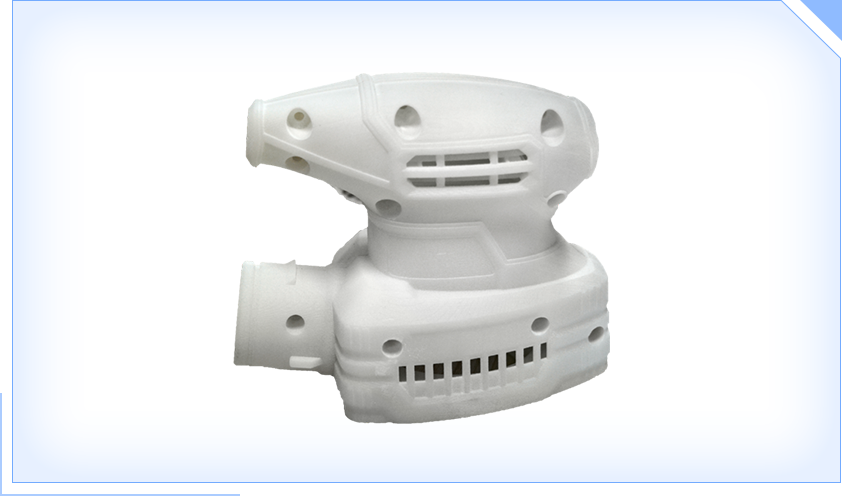

Electric Tool

Machine: EP-P420

Process: Polymer Powder Bed Fusion (PPBF)

Material: Nylon

Size: Φ135x40x100mm

Printing time: 6 h

Application: Industrial

Electric Tool

Technical Specifications

Build Volume420 x 420 x 465 mm (L x W x H)
Dimension2378 x 1394 x 2505 mm (X x Y x Z)
Gas SupplyN2
Machine Weight3000 kg
Scanning SpeedMax. 15 m/s
Max. Chamber Temperature230 °C
Power SupplyAC 380 V, 50 / 60 Hz, 15 kW
Layer Thickness0.06 - 0.2 mm
Laser PowerCO2 Laser, 120 W
Building Speed2500 cm3/h
Thermal Field ControlIndependent four-zone temperature control system
Temperature RegulationContinuous real-time building surface temperature monitoring
Control SoftwareEPControl, EPHatch
Output Data FormatSTL .OBJ .STEP or other convertible file
MaterialPA11, PA12, PA6 and it's composites
