EP-C5050 is able to use psbpowder to print investment molds with the building chamber size is 500x500x500mm. Together with traditional casting technology, the mold is possible to cast engine blocks, cylinder heads, turbines, impellers and other components with complex structures in a very short time.

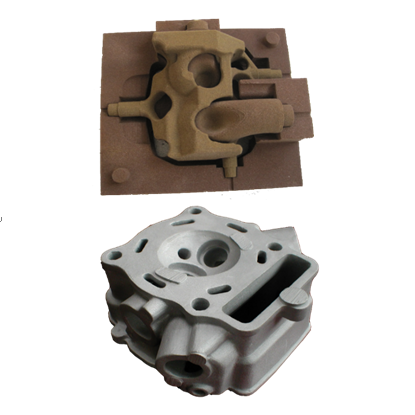

PS or Resin Sand based, cost-effective pattern casting material, which is compatible with most standard casting processes.It is suitable for prototype metal castings and can be produced in low to medium output without the use of tools.

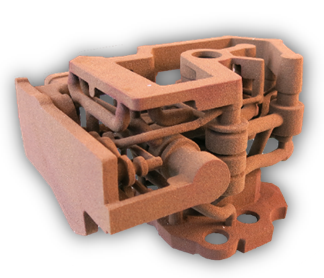

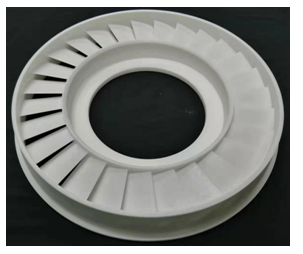

EP-C5050 SLS 3D printer offers large build size and can rapidly cast theparts with complex structure, like engine cylinder block, cylinder head, turbine and impeller, etc.
EP-C 5050 casting printer greatly reduces the R&D and tri al-producing time for casting parts with fast sand andwax mold printed directly.
Process: Polymer Powder Bed Fusion (PPBF)
Printing time: 17 h
|Material||PSB, PP, PE, etc.|
|Build Volume||520 x 520 x 500 mm( L x W x H )|
|Material Feed Mode||Double-cylinder feeding|
Bi-directional powder feeding
|Laser Power||CO₂ laser, 55W|
|Scanning System||Dynamic scanning focus|
|Scanning Speed||6 m/s|
|Control Software||Eplus3D Printing Software|
|OS System Support||Windows 7|
|Power Supply||380V, 22A, 10kW, 50/60Hz|
|Temperature Regulation||Continuous real-time building surface temperature monitoring|
|Dimension||2000 x 1300 x 2300 mm ( L x W x H )|
|Output Data Format||STL or another convertible file|
