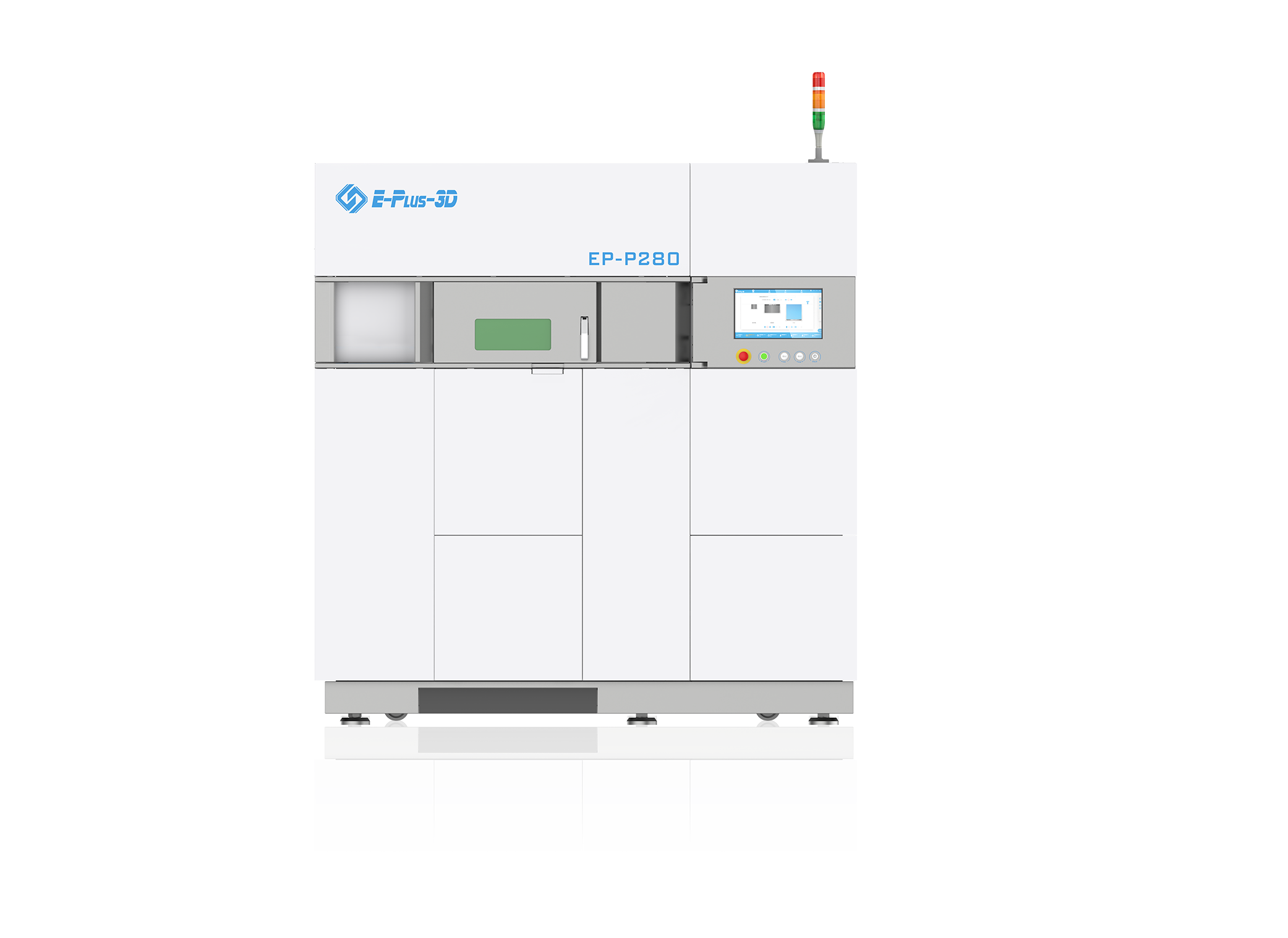

SLS 3D Printer

Eplus3D EP-P280 adopts polymer powder bed fusion (PPBF) technology, with max up to 280 x 280 x 350 mm building cylinder, EP-P280 ensures you the capability to print small & medium size parts for customized products and small batch production. Thanks to its innovative software and hardware, the EP-P280 is well designed user-friendly and cost-effective.

EP-P280 SLS 3D Printer Features

  • EP-P280 SLS 3D Printer Features 01
    High Performance
    • Optimized temperature real-time management system, temperature filed fluctuation ≤ ±1.0 °C

    • Advanced optical scanning path strategy, ensures superior details and surface quality of final parts

    • Up to 220 °C building temperature, the machine is allowed to print more types of polymers

    • Discrete variation of mechanical properties for full-scale printing parts is less than 5%

    • High material reuse rate, fresh powder drops to 30% of refreshment rate

  • EP-P280 SLS 3D Printer Features 02
    High Efficiency
    • With 55 w laser power, the machine has higher printing speed

    • Detachable optical protective windows, makes daily maintenance easy

    • Open printing parameters, enables the development of new material

    • Distinctive scanning strategy, saves the scanning time

    • Unique no-remaining material design, improves the utilization rate of powder

    •  Large volume powder dispenser, one time feeding to meet the whole cylinder printing

  • EP-P280 SLS 3D Printer Features User-Friendly & Intelligent
    User-Friendly & Intelligent

    • One-click scanning path generation

    • Capability to print with one-click

    • Printing report automatic generation, the printing process can be tracked

    • Malfunction automatically process, avoids damage to the equipment

What Can EP-P280 Print?

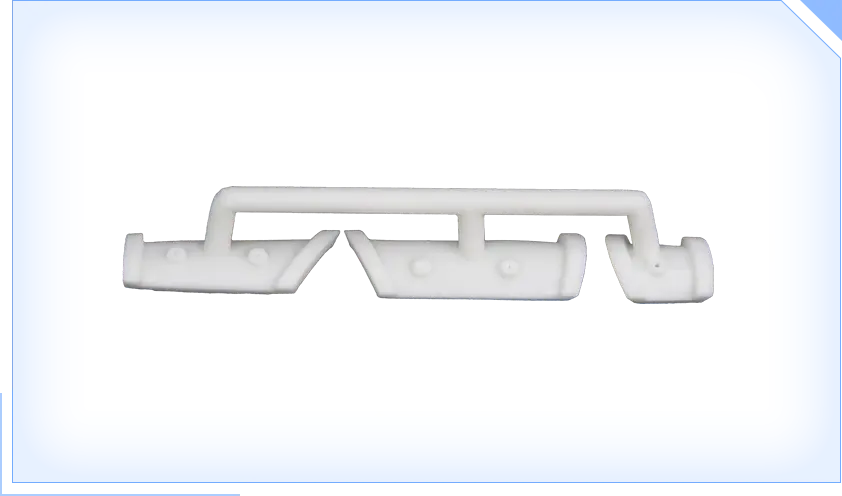

Stent for Spine Surgery

Machine: EP-P280

Process: Polymer Powder Bed Fusion(PPBF)

Material: Nylon

Size: 85x58x40mm

Application: Healthcare

Stent for Spine Surgery

Technical Specifications

Machine ModelEP-P280
Building Chamber Size280 x 280 x 350 mm (L x W x H)
Dimension1830 x 1280 x 2120 mm (L x W x H)
MaterialPP, TPU, PA 12, PA 11, PA 6 and its composite
Machine Weight1600 kg
Scanning SpeedMax. 15 m/s
Max. Chamber Temperature230 °C
Power SupplyAC 380 V, 63 A, 11.5 KW, 50 / 60 Hz
Layer Thickness0.06 - 0.3 mm
Laser PowerCO2 Laser,55 W
Building Speed15 mm/h
Gas SupplyN2
Thermal Field ControlIndependent four-zone temperature control system
Temperature RegulationContinuous real-time building surface temperature monitoring
Control SoftwareEPControl, EPHatch
Output Data FormatSTL .OBJ .STEP or other convertible file
