SLM Metal 3D Printer

The EP-M250Pro is a dual-laser equipped metal 3D printer that uses advanced MPBF™(Metal Powder Bed Fusion) technology for metal additive manufacturing with high productivity and high consistency. Machine building chamber size is 262x262x370mm. The Innovative module design not only ensures the stability and safety of the machine operation, but also help our customer with easy maintenance and transportation.

EP-M250Pro Metal 3D Printer Features

  • EP-M250pro Metal 3d Printer Feature Consistent Performance
    Consistent Performance
    • Innovative gas flow management and optimized filter system ensures a stable building environment.

    • Outstanding sealing capability minimizes oxygen content.

    • Precise laser beam quality control.

  • EP-M250pro Metal 3d Printer Feature Low Operation Cost
    Low Operation Cost
    • Quantitative powder feeding and coating ensures less powder wastage.

    • Advanced filtration system significantly increases filter lifetime.

    • Low inert gas consumption during purging and operation.>

  • EP-M250pro Metal 3d Printer Feature High Productivity
    High Productivity
    • Dual-Laser system equipped with build volume of 262x262x350mm.

    • Non-stop operation during filter change.

    • Optimized recoating strategy shortens coating time.

  • EP-M250pro Metal 3d Printer Feature Reliable And Easy Operation
    Reliable and Easy Operation
    • Convenient powder recycling systems and glove box minimizes powder contact.

    • Intelligent software ensures less human intervention.

    • Real-time monitoring of the production environment and building process.

What Can EP-M250Pro Print?

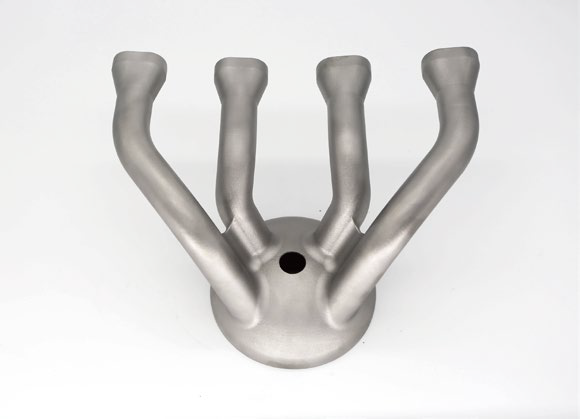

Exhaust Pipe

Machine: EP-M250Pro

Process: Metal Powder Bed Fusion (MPBF)

Material: Stainless steel

Size: Φ135*260mm³

Printing time: 38 h

Application: Automotive

Exhaust Pipe

Technical Specifications

Machine ModelEP-M250 PRO
Build Chamber (XxYxZ)262x262x350mmm³
Optical SystemFiber Laser, 500W (single or dual-laser optional)
Spot Size70µm
Max Scan Speed8m/s
Layer Thickness20μm -100μm
MaterialTitanium Alloy, Aluminium Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc
Power Supply380V, 20A, 50/60Hz, 14KW
Gas SupplyAr/N₂
Oxygen content≤100ppm
Dimension (WxDxH)3500x1300x2300mm³
Weight1700kg
SoftwareEP Control, EP Hatch
Input Data FormatSTL or Other Convertible File
