Additive Manufacturing Metal Material

Additive Manufacturing With Tool Steel

Tool Steel is an ideal material for many industries, like tooling industries.

Eplus3D's tool steel powders include ToolSteel 1.2709, MaragingSteel MS1alloys, and Tool Steel CM55. These powders have been tested for use on Eplus3D's metal 3D printers. Eplus3D also offers a wide range of validated processes for each of the above materials to ensure that the performance of the 3D printed parts is fully met.

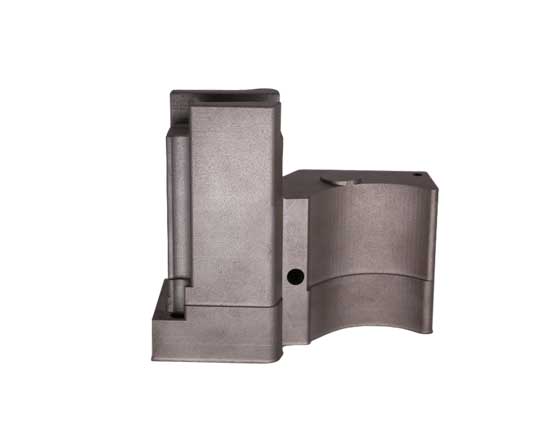

Eplus3D ToolSteel 1.2709

Parts printed using Eplus3D ToolSteel 1.2709 show excellent mechanical properties and fatigue strength being heat treatable to various needs to obtain application appropriate hardness and strength.

Typical Part Properties:

Ultimate Tensile Strength 2250 MPa

Yield Strength 2160 MPa

Elongation @ Break 3.5 %


Typical application areas:

Tooling

Eplus3D ToolSteel 1.2709
Machines: :
EP-M300 EP-M260
Products

Eplus3D MaragingSteel MS1

Parts printed using Eplus3D MaragingSteel MS1 show very good mechanical properties being easily heat treatable using a simple thermal age-hardening process to obtain excellent hardness and strength.

Typical Part Properties:

Ultimate Tensile Strength 2080 MPa

Yield Strength 2000 MPa

Elongation @ Break 4 %


Typical application areas:

Tooling

Eplus3D MaragingSteel MS1
Machines :
EP-M300 EP-M260

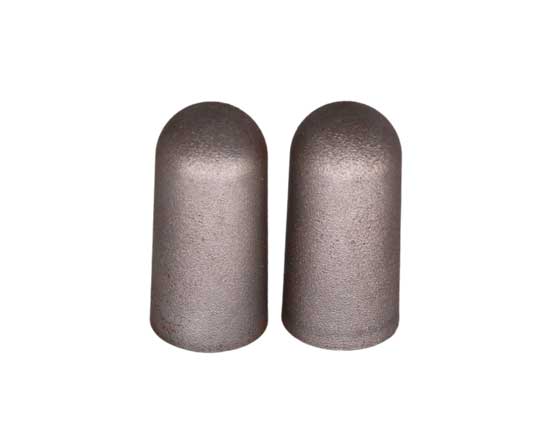

Eplus3D ToolSteel CM55

Parts printed using Eplus3D ToolSteel CM55 are applied for cold and hot-working tools as well as engineering solutions.

Typical Part Properties:

Ultimate Tensile Strength 1730 MPa

Yield Strength 2030 MPa

Elongation @ Break 4 %


Typical application areas:

Tooling

Eplus3D ToolSteel CM55
Machines :
EP-M300 EP-M260
