Additive Manufacturing Metal Material

Additive Manufacturing With Stainless Steel

Stainless Steel is an ideal material for many industries, including medical, oil and gas.

Eplus3D's stainless steel powders include 316L/1.4404 and17-4PH/1.4542. These powders have been tested for use on Eplus3D's metal 3D printers. Eplus3D also offers a wide range of validated processes for each of the above materials to ensure that the performance of the 3D printed parts is fully met.

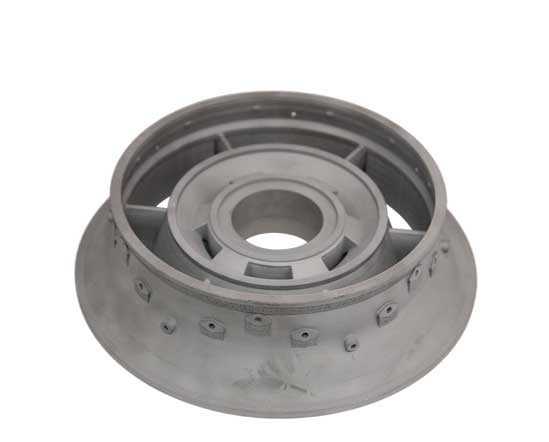

Eplus3D StainlessSteel 316L/1.4404

Parts printed using Eplus3D StainlessSteel 316L/1.4404 show a high level of corrosion resistance, toughness and ductility as well as a high resistance to acids.

Typical Part Properties:

Density: 7.85 (g/cm³)

Tensile Strength: XY:720±40MPa; Z:690±30MPa

Yield strength: XY:670±30MPa; Z:670±50MPa

Elongation @ Break 30±5%

Hardness: 87±3HRB


Typical application areas:

Aerospace

Tooling

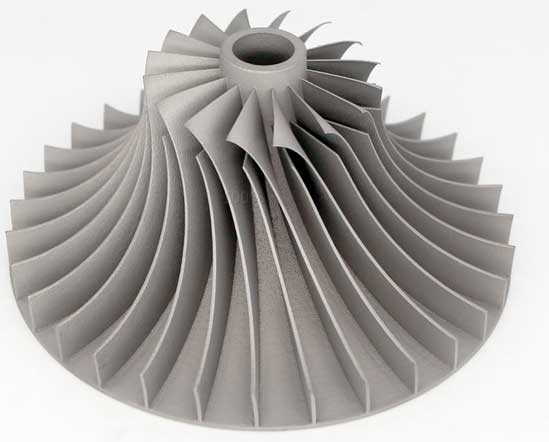

Eplus3D StainlessSteel 316L/1.4404

Eplus3D StainlessSteel 17-4PH/1.4542

Parts printed using Eplus3D StainlessSteel 17-4PH/1.4542 are in combination with the HiPro process enable high volume production which potentially can replace press and sinter production in automotive.

Typical Part Properties:

Density: 7.8 (g/cm³)

Tensile Strength: XY:960±30MPa; Z:860±30MPa

Yield strength: XY:910±30MPa; Z:830±30MPa

Elongation @ Break 21±3%

Hardness: 35±3HRB


Typical application areas:

Aerospace

Tooling

Eplus3D StainlessSteel 17-4PH/1.4542

Eplus3D StainlessSteel PH1

Parts printed using Eplus3D StainlessSteel PH1 show a good corrosion resistance and excellent mechanical properties, especially in the precipitation hardened state.

Typical Part Properties:

Ultimate Tensile Strength 1440 MPa

Yield Strength 1300 MPa

Elongation @ Break 13 %


Typical application areas:

Automotive

Medical

Energy

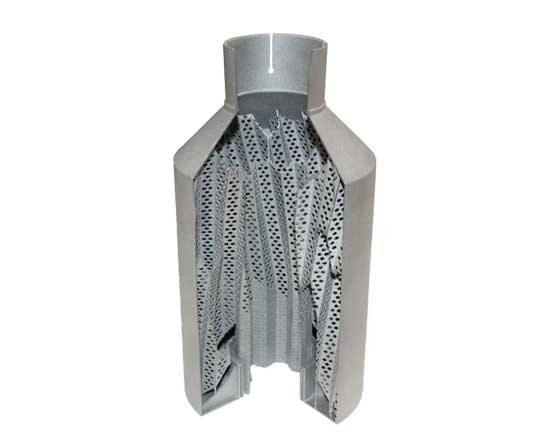

Eplus3D StainlessSteel PH1
