Additive Manufacturing With Nickel Alloys
Nickel Alloys are ideal materials for a wide range of applications, for example in gas turbines for both aerospace, energy and oil and gas.
Eplus3D's Nickel Alloys metal powders include IN625/2.4856, IN718/2.4668, HX alloys/2.4665 and GH3536. These Nickel Alloys metal powders have been tested for use on Eplus3D's metal 3D printers. Eplus3D also offers a wide range of validated processes for each of the above materials to ensure that the performance of the 3D printed parts is fully met.
Eplus3D Nickel Alloys IN625/2.4856
Parts printed using Eplus3D NickelAlloy IN625 are characterized by having high tensile, creep and rupture strength and are heat and corrosion resistant.
Nickel Alloys IN625/2.4856 Typical Part Properties:
Density: 8.4 g/cm³
Tensile Strength: XY: 1000 ± 50 MPa; Z: 950 ± 50 MPa
Yield strength: XY: 750 ± 50 MPa; Z: 620 ± 50 MPa
Elongation @ Break XY: 38 ± 5 %; Z: 40 ± 5 %
Hardness: 70 ± 3 HRC
Nickel Alloys Typical Application Areas:
Aerospace
Automotive
Energy

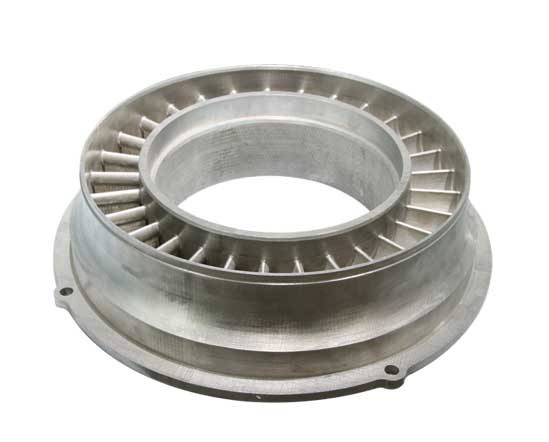

Eplus3D NickelAlloy IN718 / 2.4668
Parts printed using Eplus3D NickelAlloy IN718 show good tensile, fatigue, creep and rupture strength at temperatures up to 700°C making it ideal for many high temperature applications.
Nickel Alloys IN718/2.4668 Typical Part Properties:
Density: 8.2 g/cm³
Tensile Strength: XY: 1030 ± 50 MPa; Z: 950 ± 50 MPa
Yield strength: XY: 760 ± 50 MPa; Z: 670 ± 50 MPa
Elongation @ Break XY: 28 ± 4 %; Z: 34 ± 4 %
Hardness: 42 ± 3 HRC
Nickel Alloys Typical Application Areas:
Aerospace
Automotive
Energy
Eplus3D NickelAlloy HX / 2.4665
Parts printed using Eplus3D Nickel Alloy HX show high strength and oxidation resistance also at elevated temperatures of up to 1200°C.
Nickel Alloys HX/2.4665 Typical Part Properties:
Density: 8.3 g/cm³
Tensile Strength: XY: 900 ± 50 MPa; Z: 800 ± 50 MPa
Yield strength: XY: 700 ± 50 MPa; Z: 650 ± 50 MPa
Elongation @ Break XY: 33 ± 5 %; Z: 37 ± 5 %
Nickel Alloys Typical Application Areas:
Aerospace
Automotive
Energy
Eplus3D NickelAlloy GH3536
Parts printed using Eplus3D NickelAlloy GH3536 exhibit excellent high-temperature oxidation resistance along with good tensile, creep and rupture strength at temperatures up to 900°C, making it ideal for extreme high-temperature aerospace and industrial applications.
Nickel AlloysGH3536Typical Part Properties:
Density: 8.3g/cm³
Tensile Strength: XY:830 ±30 MPa; Z:710 ±30 MPa
Yield strength: XY:620 ±30 MPa; Z:530 ±30 MPa
Elongation @ Break XY:33±5%; Z:42±5%
Nickel Alloys Typical application areas:
Aerospace
Automotive
Energy
