Additive Manufacturing Metal Material

Additive Manufacturing With Titanium

Titanium is an ideal material for many high-performance applications in aerospace, automotive & medical.

Eplus3D's aluminum powders include Ti64, Ti64ELI, Ti64 Grade 5, Ti64 Grade 23, TiCP Grade 2 alloys. These powders have been tested for use on Eplus3D's metal 3D printers. Eplus3D also offers a wide range of validated processes for each of the above materials to ensure that the performance of the 3D printed parts is fully met.

Eplus3D Titanium Ti64

Parts printed using Eplus3D Titanium Ti64 are characterized by excellent mechanical properties and corrosion resistance, combined with low specific weight and biocompatibility.

Typical Part Properties:

Ultimate Tensile Strength 1055 MPa

Yield Strength 945 MPa

Elongation @ Break 13 %


Typical application areas:

Automotive

Medical

Tooling

Eplus3D Titanium Ti64
Machines :
EP-M260 EP-M150
Products

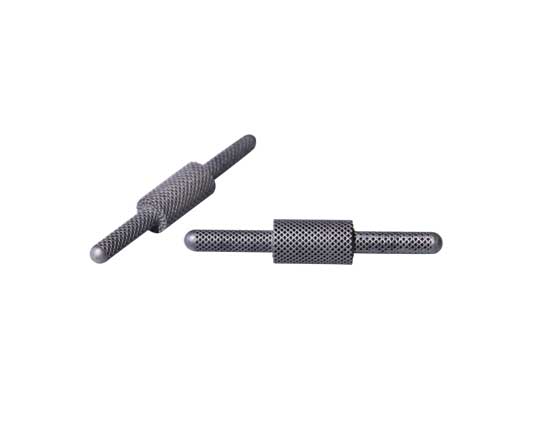

Eplus3D Titanium Ti64ELI

Parts printed using Eplus3D Titanium Ti64ELI are characterized by excellent mechanical properties and corrosion resistance, combined with low specific weight and biocompatibility.

Typical Part Properties:

Ultimate Tensile Strength 1055 MPa

Yield Strength 945 MPa

Elongation @ Break 13 %


Typical application areas:

Automotive

Medical

Tooling

Eplus3D Titanium Ti64ELI
Machines :
EP-M260 EP-M150

Eplus3D Titanium Ti64 Grade 5

Parts printed using Eplus3D Titanium Ti64 Grade 5 are characterized by excellent mechanical properties and corrosion resistance, combined with low specific weight and biocompatibility.

Typical Part Properties:

Ultimate Tensile Strength 1080 MPa

Yield Strength 980 MPa

Elongation @ Break 14 %


Typical application areas:

Automotive

Medical

Tooling

Eplus3D Titanium Ti64 Grade 5
Machines :
EP-M260 EP-M150

EPLUS 3D Titanium Ti64 Grade 23

Parts printed using Eplus3D Titanium Ti64 Grade 23 are characterized by excellent mechanical properties and corrosion resistance combined with low specific weight and biocompatibility.

Typical Part Properties:

Ultimate Tensile Strength 1050 MPa

Yield Strength 940 MPa

Elongation @ Break 14 %


Typical application areas:

Automotive

Medical

Tooling


EPLUS 3D Titanium Ti64 Grade 23
Machines :
EP-M260 EP-M150

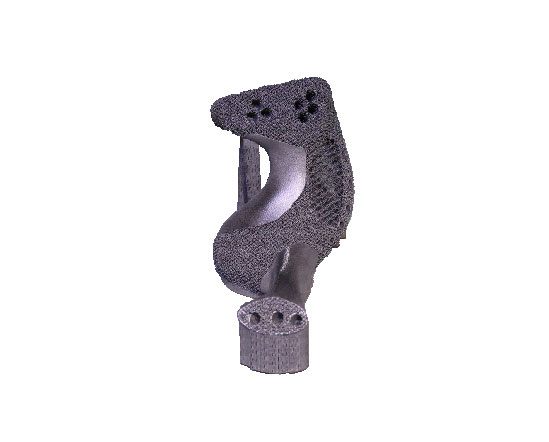

EPLUS 3D Titanium TiCP Grade 2

Parts printed using Eplus3D Titanium TiCP Grade 2 are characterized by having a good strength-to-weight ratio, corrosion resistance and ductility.

Typical Part Properties:

Ultimate Tensile Strength 570 MPa

Yield Strength 445 MPa

Elongation @ Break 26%


Typical application areas:

Automotive

Medical

Tooling


EPLUS 3D Titanium TiCP Grade 2
Machines :
EP-M260 EP-M150
