SLM Metal 3D Printer

Eplus3D Introduces EP-M450H to the successful line of MPBF™ 3D printers. EP-M450H is a marvelous metal printer that makes the production of reliable and high quality large metallic parts viable on industrial scale without requiring any tools.

For more details about the EP-M450H 3D metal printing machine, get in touch with us today!

EP-M450H Metal 3D Printer Features

  • EP-M450H Metal 3D Printer Feature High Quality

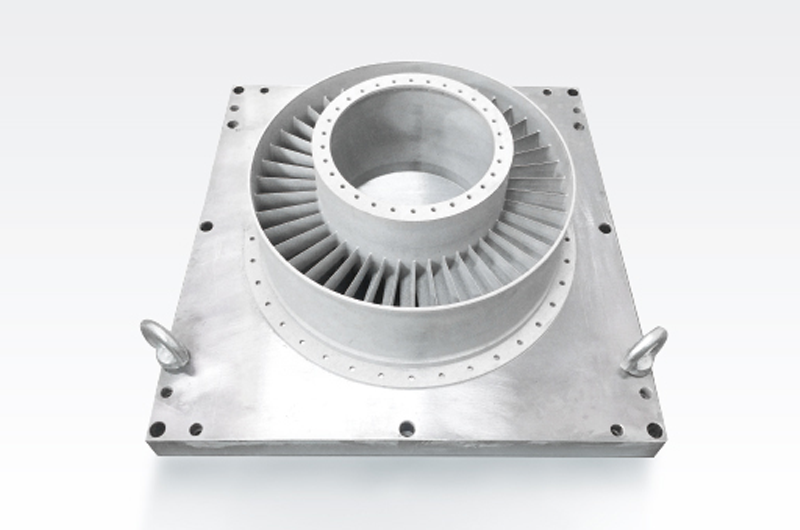

    High Quality
    • Printed parts' density > 99.9%, deviation in parts' mechanical properties < 5%.

    • The optimized gas flow design ensures efficient removal of smoke and splashes as well as achievement of uniform and consistent full size printing.

    • Dynamic software with ability to divide the model into different sections like upper and lower surfaces, core areas and small areas etc. Different process parameters can be applied individually to these parts for high printed part quality.

    • Repeatable positional accuracy along Z-axis of building direction ≤±5 μm.

    • Overlapping deviation with dual laser printing ≤±0.1 mm. Overall mechanical properties of the printed part remains same when compared to printing results with the single laser machine.

  • EP-M450H Metal 3D Printer Feature High Efficiency

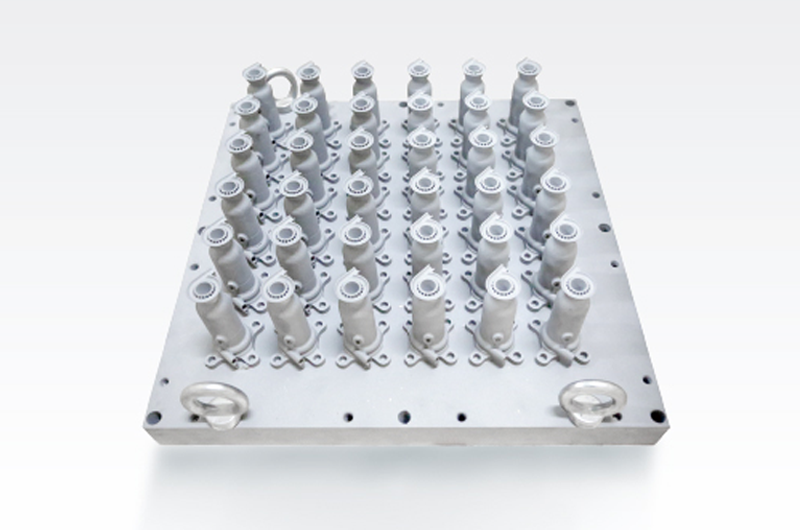

    High Efficiency
    • Build chamber size (X*Y*Z): 450*450*1080 mm, build chamber volume >200 L.

    • Printing with increased layer thickness can be realized, increasing the production capacity.

    • With in-house developed processing software (EP-Hatch), optimized scanning strategies can be achieved yielding reduced print duration.

    • Fiber Laser 500 W / 2 x 500 W / 4 x 500 W (700 W and 1000 W are optional) to increase printing efficiency by 70%.

    • Maxiumum building rate of 190 cm³/h.

    • The bi-directional powder re-coating method leads to reduced re-coating time.

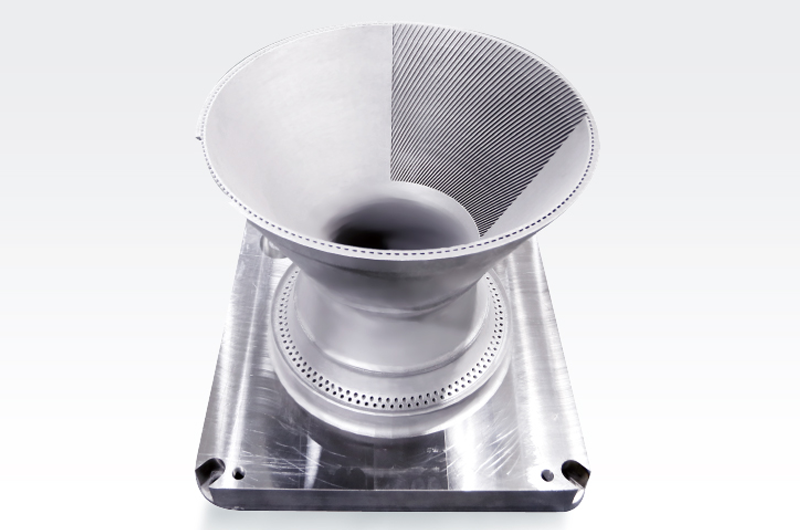

  • EP-M450H Metal 3D Printer Feature Reliable
    • Excellent core optic components from world-class supplier and mature process control parameter algorithm provides highest part quality.

    • High quality uniform part printing due to excellent control over building environment and components.

    • Tightly sealed build chamber maintains oxygen concentration <100 ppm and a stable pressure during printing.

    • Sustained monitoring of powder left in feeder and ability to add powder without stopping the machine ensures uninterrupted part printing.

    • Double protection of chamber door is attained due to dual gas releasing ports on top of printing chamber.

  • EP-M450H Metal 3D Printer Feature Cost-effective & Easy Operation

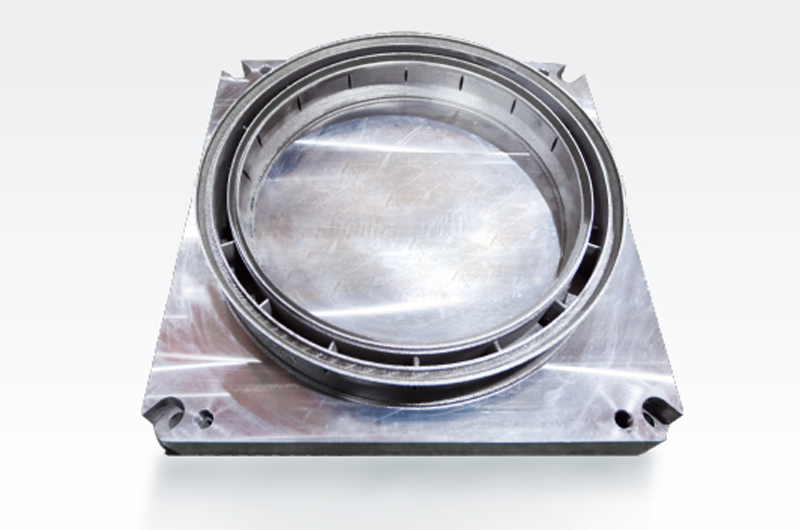

    Cost-effective & Easy Operation
    • Three-stage filtration system with permanent filter can use blow back function to remove the fume.

    • Highly user friendly software interface and one-click printing technology makes printing super simplified.

    • Comparability with different types of recoater lips such as ceramic, PU, alloy steel etc.

    • Reduced gas consumption during printing ≤12 L/min helps reducing operation cost.

    • Traceable print records after every print and real-time display of readings for various sensors.

  • EP-M450H Metal 3D Printer Open System

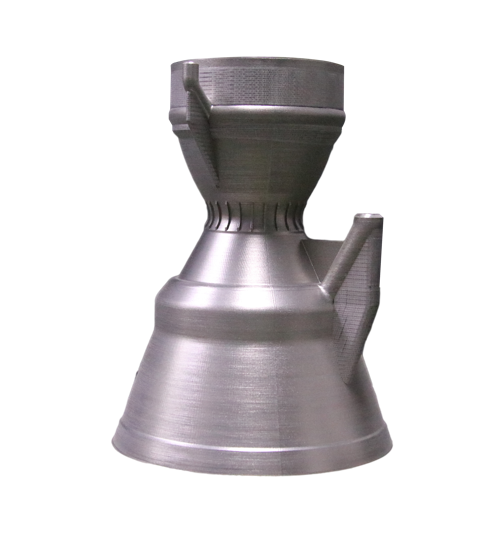

    Open System
    • Open parameters for editing laser power, scan speed, scan direction, up and down facing surfaces etc.

    • Open system ensures freedom to choose among wide range of metal powders available in market.

    • Process software can be integrated with Siemens NX software to realize effective planning of design, simulation and printing path planning, within one software and highly improving the production efficiency.

    • Process software supports SLC and CLI formats.

What can EP-M450H print?

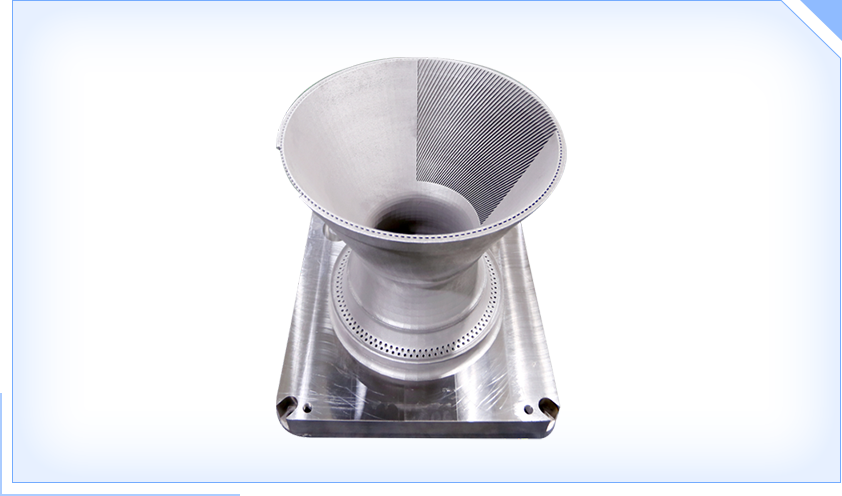

Exhaust Nozzle Exit

Machine: EP-M450H

Process: Metal Powder Bed Fusion (MPBF)

Material: TC4

Size: Φ394x341mm

Printing time: 150 h

Application: Aerospace

Exhaust Nozzle Exit

Technical Specifications

Machine ModelEP-M450H
Build Volume (X x Y x Z) (height incl. build plate)450 x 450 x 1080 mm (17.72 x 17.72 x 42.52 in)
Optical SystemFiber Laser 1 / 2 / 4 x 500 W (700 W and 1000 W are optional)
Spot Size70 - 120 μm
Max Scan Speed8 m/s
Layer Thickness20 - 120 µm
Theoretical PrintspeedUp to 190 cm³/h
MaterialTitanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply380 V, 50 / 60 Hz, 14 〜22 kW
Gas SupplyAr / N₂
Oxygen Content≤ 100 ppm
Dimension (W x D x H)6410 x 3670 x 4850 mm
Weight15000 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
