SLA 3D Printer

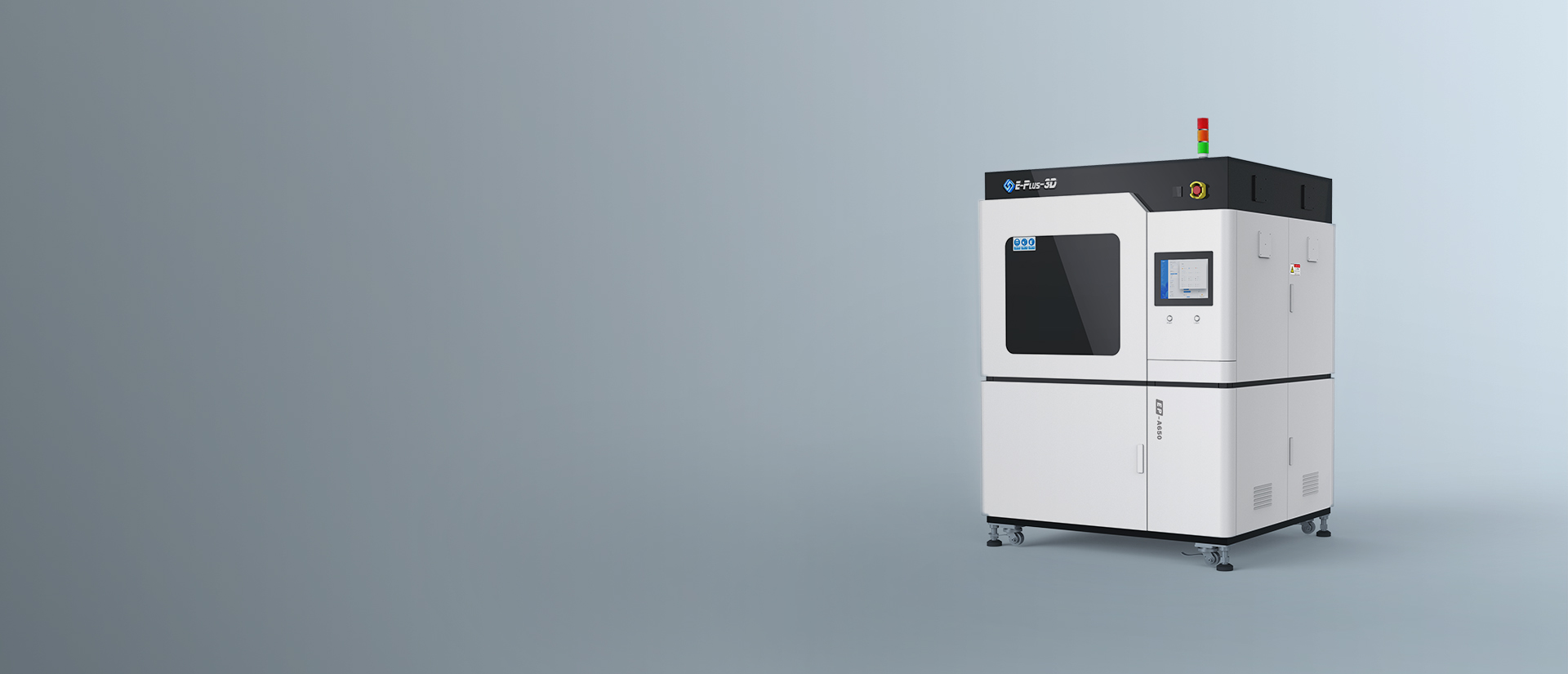

EP-A650 3D Printer Stereo Lithography is developed by Eplus3D, which is professional in 3D printing technology. The system is user-friendly with high stability, care-free maintenance, and perfect printing results. Feel free to reach out to us to learn more details about the EP-A650 3D Printing machine!

EP-A650 Resin 3D Printer Features

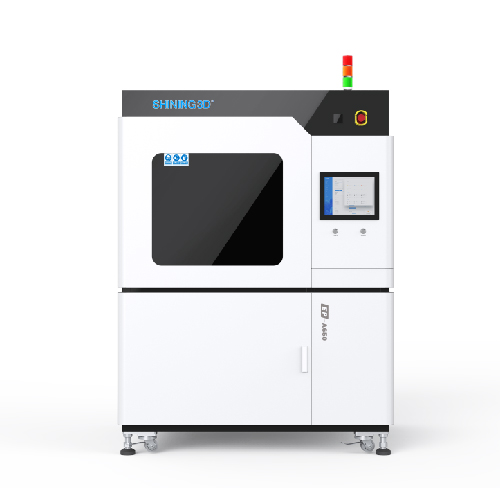

  • EP-A650 Resin Sla 3d Printer Feature High Stable Reliable
    Stable & Reliable
    • Dense high precision marble moving substrate

    • Self-developed software, support continuous upgrade

    • Automatic detection & calibration by functional module ensure working stability

    • Optimized structure, less maintenance

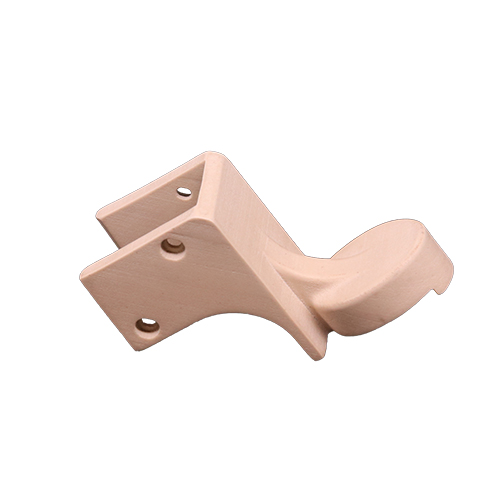

  • EP-A650 Resin Sla 3d Printer Feature High Efficiency
    High Efficiency
    • Patented VarioBeam technology

    • High-speed scan

    • Brand-new software brings one-click print and outstanding performance

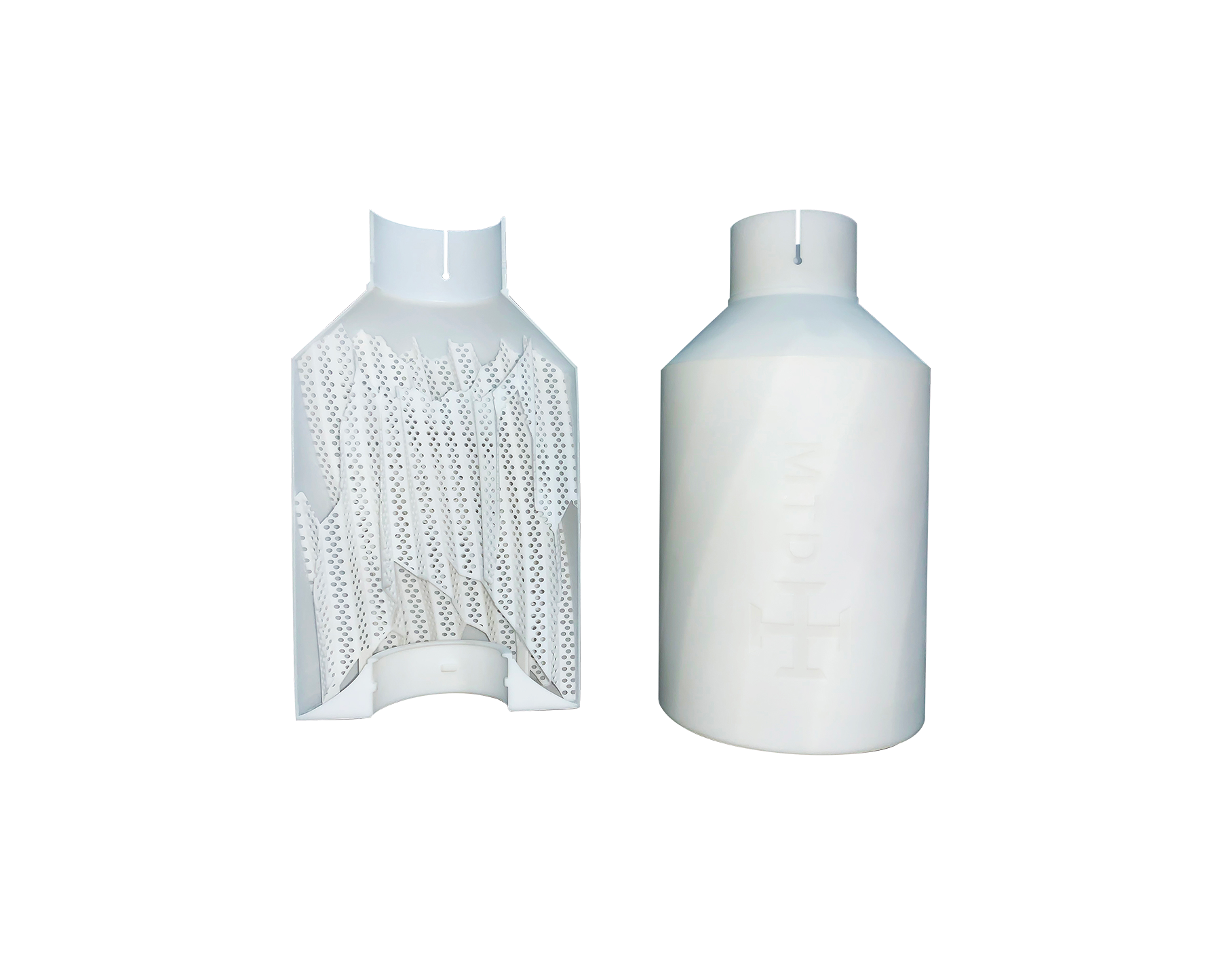

  • EP-A650 Resin Sla 3d Printer Feature High Accuracy
    High Accuracy
    • Self-developed 3D optical high-precision calibration technology

    • Avoiding the influence of human factors

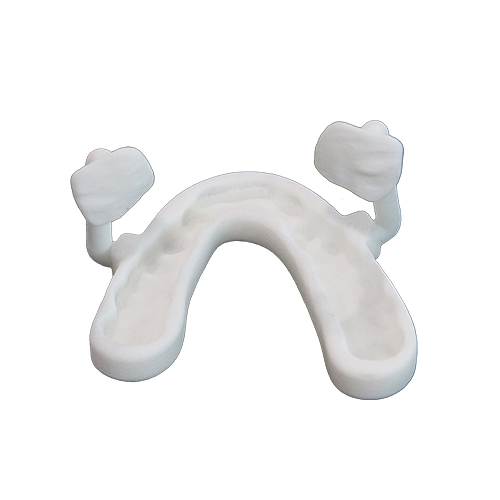

  • EP-A650 Resin Sla 3d Printer Feature User Friendly Intelligent
    User-friendly & Intelligent
    • Provide different processing parameter package

    • Broad application flexibility

    • Remote control available

  • EP-A650 Resin Sla 3d Printer Feature New Software
    New Software
    • EP-Resin, machine controlling software

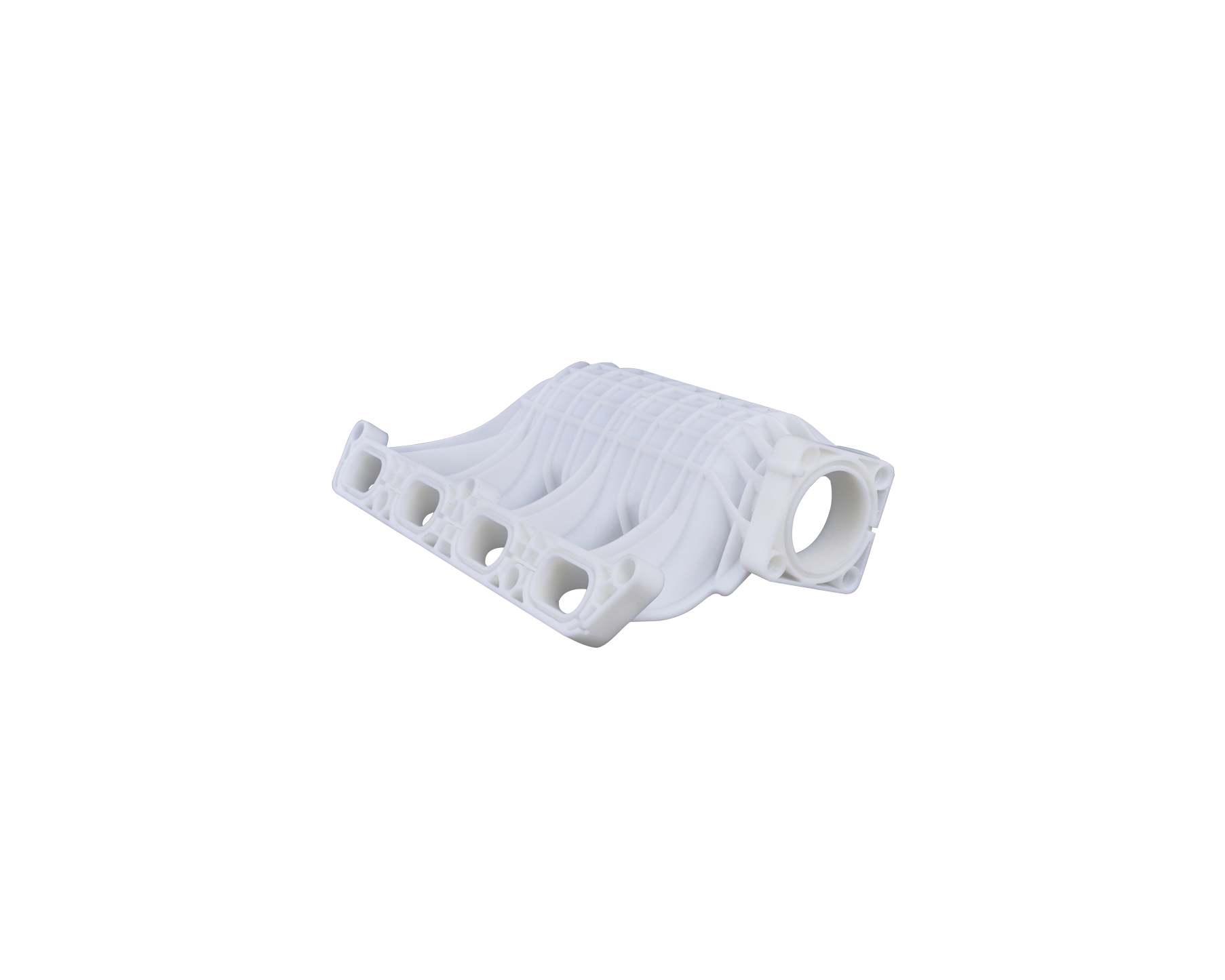

  • EP-A650 Resin Sla 3d Printer Feature Materials Recommended
    RECOMMENDED MATERIALS
    • Somos ® GP Plus 14122
      White opaque material, similar as ABS and PBT, an ideal choice for automobile, aerospace and consumption products, also can be used in biomedicine, dental and skin applications.
      Somos ® WaterShed XC 11122Transparent material without color, similar as ABS and PBT, with exceptional clarity and high water-resistance, an ideal choice for automobile, medical and consumption products, including lens, packing, fluid flow analysis, concept models, etc.

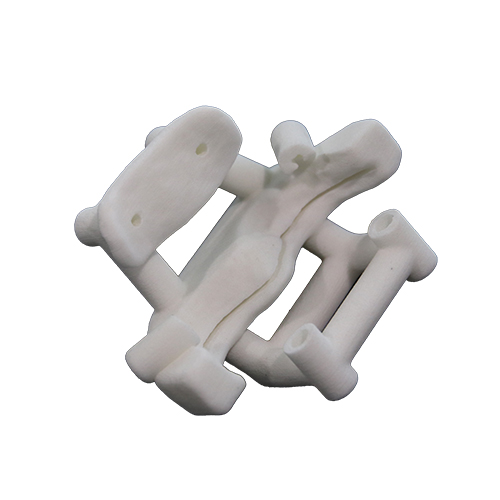

  • EP-A650 Resin Sla 3d Printer Feature Recommended Materials
    RECOMMENDED MATERIALS
    • Somos ® PerFORM
      White material, with high heat tolerance, outstanding detail resolution and stiffness, ideal material for a variety of applications including tooling, wind tunnel testing, high temperature testing, electrical casings and automotive housings.
      SH8900
      White material, with good surface effect and ductility, an ideal choice for hand models, functional parts, models, etc.
      Open Platform
      Compatible with standard 355 nm photosensitive resin.

What Can EP-A650 Print?

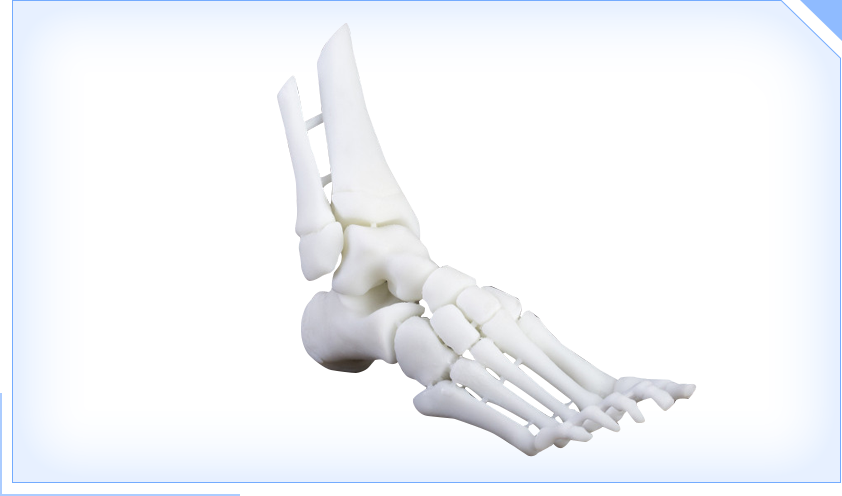

Foot Skeleton Model

Machine: EP-A650

Process: Stereolithography (SLA)

Material: Somos® Precise

Size: Φ220x90x120mm³

Application: MedicalAerospace


Foot Skeleton Model

Technical Specifications

Machine ModelEP-A650
Build Volume (X*Y*Z)650 x 600 x 400 mm
Layer Thickness0.05 mm~0.25 mm to choose
Spot Size0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)
Build Accuracy*± 0.1 mm (L<100 mm)
± 0.1% xL (L ≥100 mm)
LaserDiode-pumped solid-state laser Nd: YVO4
wavelength:355 nm
Scanning Speed15m/s (Max), 6-10m/s (Typical)
Dimensions (L*W*H)1500 *1300*2200 mm
Net Weight1050 kg
Resin250 kg
Power Supply200-240 VAC, 50/60 Hz, single phase
SoftwareEP-Resin
Input Data*.stl /*.slc/*.cli/*.epi
Working PlatformMarble platform (A0 level)
Material Level Position Accuracy± 0.02
Focus LensF-theta lens system
Optical Scanning SystemHigh-speed scanning galvanometer
Operating EnvironmentTemperature 20-26 ; relative humidity <40% (non-condensing)
