Post-processing is an important procedure in 3d printing, so how to post-process 3d printed metal parts?


1. Tools for post processing

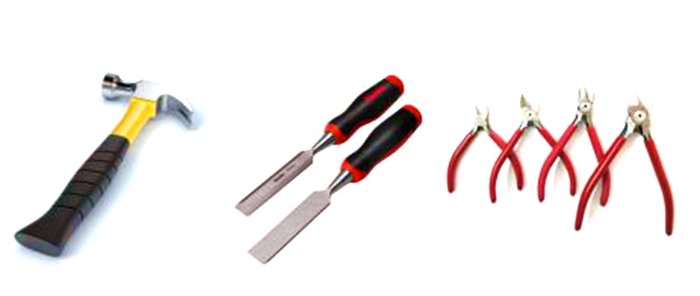

a. Supports removal tools


Post Processing Of Metal Additive Manufacturing

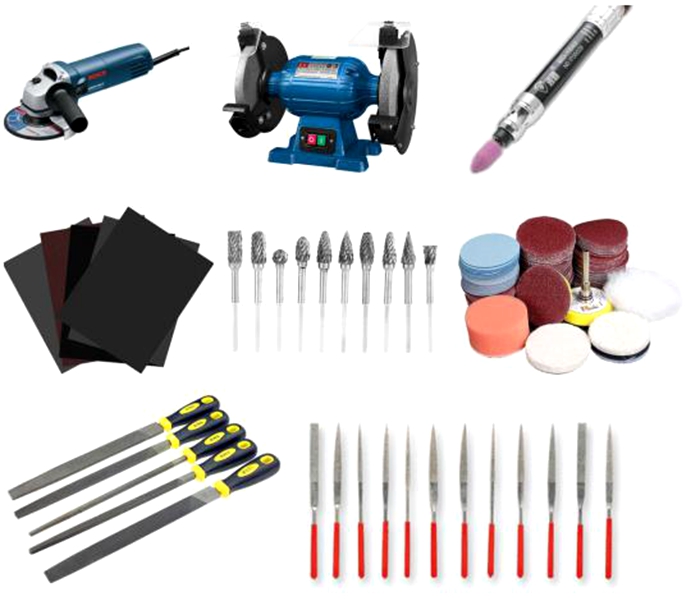

b. Grinding tools


Post Processing Of Metal Additive Manufacturing

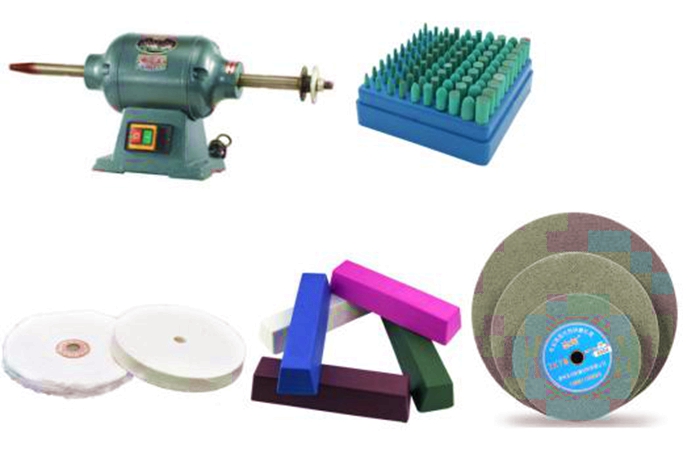

 c. Polishing tools


Post Processing Of Metal Additive Manufacturing


2. Post-treatment process for 3d printed metal parts


Post-treatment process mainly includes: heat treatment, wire cutting, support removal, grinding, machining, polishing and sandblasting, etc.


a.Heat treatment

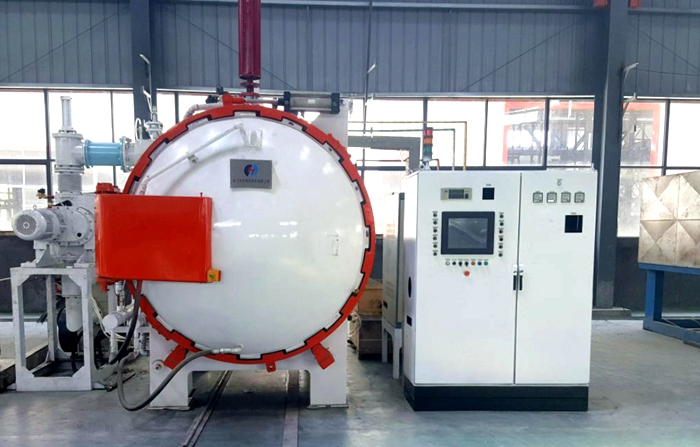

After the parts are taken out from 3d printer, the residual powder on the surface of parts should be cleaned with explosion-proof vacuum cleaner and then put into


Post Processing Of Metal Additive Manufacturing


the vacuum furnace for heat treatment, so as to release the internal stress and change the physical properties of the parts.


b. Wire cutting

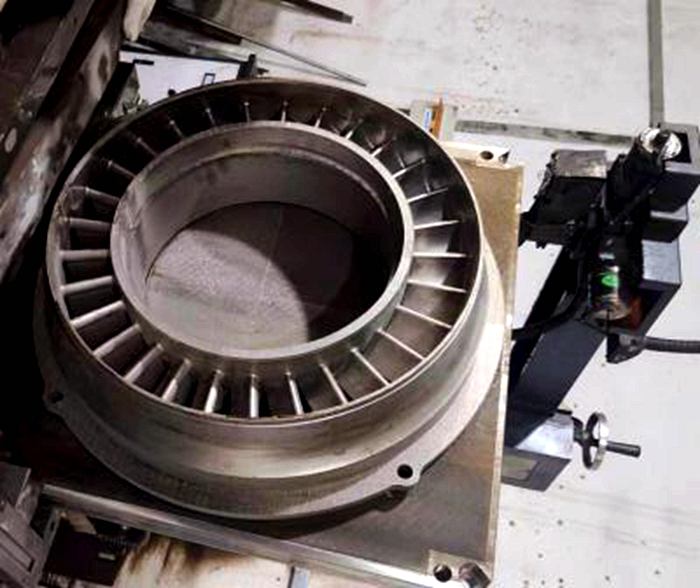

Use a wire cutting machine to cut the parts from the building plate, as shown in the picture below.


Post Processing Of Metal Additive Manufacturing


c.Support removal

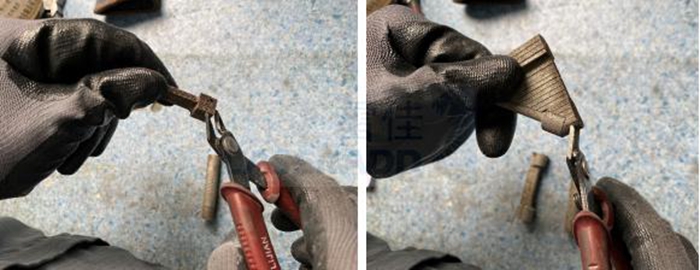

Remove the support from the parts with tools such as pliers.


Post Processing Of Metal Additive Manufacturing


d. Grinding


After most of the supports are removed, grinding head can be used to polish the remaining supports on the surface, until all the supports are removed.

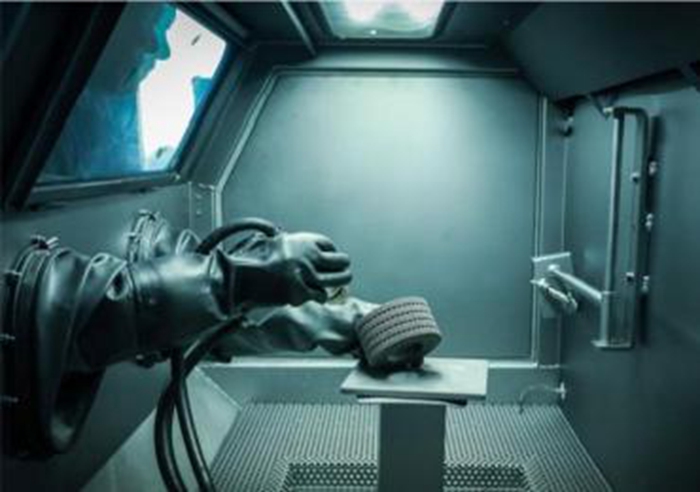

e. Sand blasting


After polishing, the surface of the 3d printed metal parts after grinding is still rough, and the surface color is uneven. Sand blasting is necessary to be performed. After sandblasting, the surface is relatively smooth and uniform in color.


Post Processing Of Metal Additive Manufacturing


The above is an introduction to post-processing of 3d printed metal parts. Please contact Eplus3D for more details.
